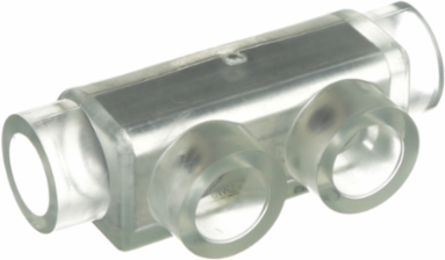

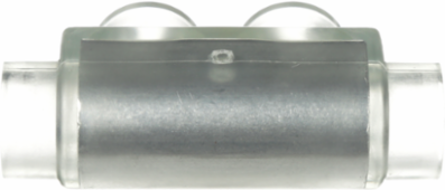

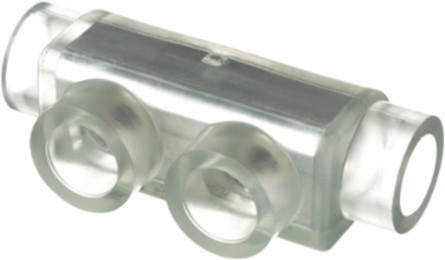

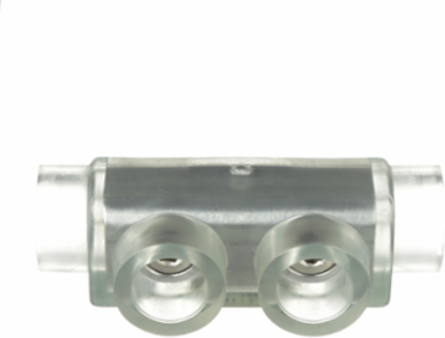

Panduit PISR1/0-1 Pan-Lug™ PISR1/0-1 Multi-Tap Con, In-Line Splicer/Reducer, 1/0, Aluminum/PVC

Pan-Lug™ PISR1/0-1 Multi-Tap Con, In-Line Splicer/Reducer, 1/0, Aluminum/PVC
Pan-Lug™ PISR1/0-1 Multi-Tap Con, In-Line Splicer/Reducer, 1/0, Aluminum/PVC
Pan-Lug™ PISR1/0-1 Multi-Tap Con, In-Line Splicer/Reducer, 1/0, Aluminum/PVC
Pan-Lug™ PISR1/0-1 Multi-Tap Con, In-Line Splicer/Reducer, 1/0, Aluminum/PVC
Pan-Lug™ PISR1/0-1 Multi-Tap Con, In-Line Splicer/Reducer, 1/0, Aluminum/PVC
  • MPN: PISR1/0-1
  • UPC: 074983421480
  • PPN: PAN-PISR1/0-1
  • UNSPSC: 39121449

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$32.97/ EA

Description

Splicer/Reducer, dual rated for use with copper or aluminum conductors, 1/0 STR - #14 SOL.

Specifications

Specifications

Country of Origin
United States
Product Segment
IEI
Sub Brand
Pan-Lug™
CSA Temperature Rating (°C)
90
Overall Length (In.)
2.91
Overall Width (mm)
24.1
Finish/Coating
Tin-Plated
Overall Length (mm)
73.9
Product Type
In-Line Splicer/Reducer Multi-Tap Connector
Base Material
Aluminum
Screw Type
Hex
Copper Conductor Size
14-1/0 AWG STR, 10-8 AWG SOL
Any Reason Not to SellN
Overall Height (mm)35.8
Maximum Voltage (V)600
Insulation MaterialBlue PVC
Wire Strip Length (In.)15/16
Overall Height (In.)1.41
Overall Width (In.)0.95
Wire Strip Length (mm)23.9
Barrel TypeStandard
UL Temperature Rating (°C)90
Aluminum Conductor Size14-1 AWG

Packaging Details

UPC
07498342148
Standard Package Volume Ft3
0.0203
Std Package Height In
2.5
Std Package Length In
4.3
Std Package Width In
3.15
Std. Pkg. UOM
Piece
Std. Pkg. Qty.
1
Standard Carton Weight Pounds
0.0000
Min. Order UOM
Piece
REACH Status
N
Mercury Content Indicator
N
Min Order Qty
1.0000
Pallet Volume
0.000000
RoHS Compliant
Compliant
GTIN Package00074983421480
Standard Package Weight Pounds0.1900
Std Package Height MM63.5
Std Package Length MM109.22
Std Package Width MM80.01
UOM EA PKEA
Standard Carton Volume Ft30.0000
Std Ctn Qty0
EAN00074983421480
ARRA CompliantY
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
