Klein Tools NCVT-4IR Non-Contact Voltage Tester with Infrared Thermometer, 12-1000 AC V
- MPN: NCVT-4IR
- UPC: 092644690617
- PPN: KLT-NCVT-4IR
- UNSPSC: 41113637
CAD
$62.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

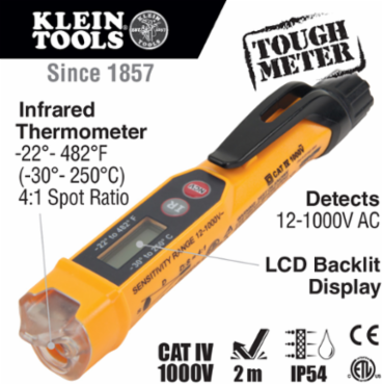

Klein Tools NCVT-4IR is a voltage tester that provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires; as well as infrared (IR) thermometer measurements, making it the perfect choice for HVAC professionals.
Features
- Voltage Tester designed specifically for HVAC applications
- Non-Contact Voltage Tester provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, and AC voltage in security, entertainment, communications, environmental control, and irrigation systems
- Detects AC voltage from 12 to 1000V with visual and audible indicators
- 4:1 distance-to-spot ratio IR thermometer with user selectable Degrees Fahrenheit or Degrees Celsius from -22 to 482-Degree Fahrenheit (-30 to 250-Degree Celsius)
- Convenient laser pointer to target measurement area for temperature measurement
- Backlit LCD display with 0.1-Degree resolution
- Auto power-off conserves and extends battery life
- Screw-thread battery cap with O-ring ensures dust and water resistance
- Lightweight, compact tool with pocket clip provides easy storage and quick access
- IR Thermometer, Laser Pointer, LCD, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
Documentation & Downloads
Specifications
Additional
- Detects Voltage
- 12 - 1000V AC
- Battery Life
- Average 134 hr; Continuous IR 64 hr
- Temperature Range
- -22 to 482 F (-30 to 250 C)
- Drop Protection
- 6.6 ft (2 m)
- Overall Width
- 0.96 in (29 mm)
- Weight
- 2.5 oz (72 g)
- Ingress Protection
- IP54
TypeNon-Contact
Frequency50 - 500 Hz
Distance-to-Spot Ratio4:1
Overall Length6.25 in (15.9 cm)
Overall Height5.83 In (148 mm)
Battery Type2 x AAA
StandardCAT IV 1000V
