Sta-Kon L971 Ring Terminal
- MPN: L971
- UPC: 078621086420
- PPN: T-B-L971
CAD
$15.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

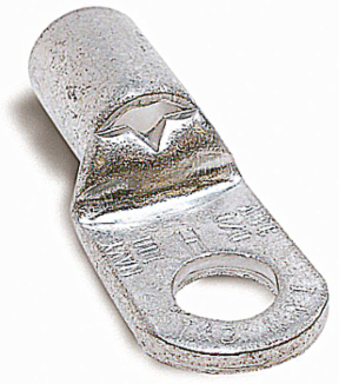

Non-Insulated Tubular Ring Terminal, Length 2.25 Inches, Width 1.04 Inches, Bolt Hole 1/4 Inch, Wire Range 3/0AN-4/0, Copper, Tin Plated, 50 Pack
Features
- These non-insulated ring terminals are made of electrolytic copper for high conductivity.
- They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
- Application Tools: TBM6, TBM6S, WT3185
Specifications
Packaging
- Inner Quantity
- 50
- Outer Quantity
- 500
- Weight Uom
- 9 lbs. per 100
Inner Dimensions (inches)6x4.5x3
Outer Dimensions (inches)24.13x12.63x3.43
North American Specifications (UNSPSC)
- UNSPSC
- 39121432 Electrical terminals
- Brand Name
- Sta-Kon
- Special Features
- These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
- Wire Size
- 3/0AN-4/0
- Material
- Copper
IGCC4603 Electrical terminals
TypeRing Terminal
StandardUL E9809
Voltage Rating600V
ColorMetallic
European Specifications (ETIM)
- ETIM
- EC001051 Tube cable lug for copper conductors
- Flange shape
- Ring shape
- Insulated
- N
- Material
- Copper
- Number of fixing holes
- 1
Connecting angleStraight
Slender flange modelN
With sight-holeY
Surface protectionTinned
