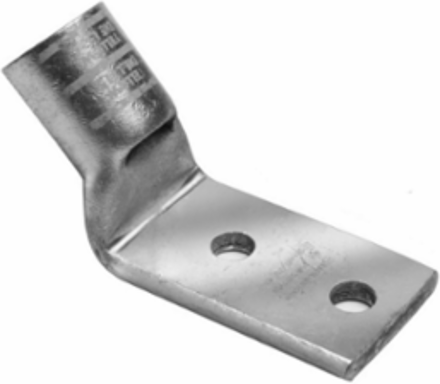

Burndy YAV2CL2TC38FX45 Copper Hylug Connector, 2 AWG, 35 kV, 2 Holes, 0.40 Inch Stud, Tin Plated
- MPN: YAV2CL2TC38FX45
- UPC: 781810022252
- PPN: BUR-518446
CAD
$23.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug; 2 Holes with Inspection Window; #2 AWG Flex,60 Navy; 600V-35kV; 3/8" stud; Standard; Compression; 0.40 in BCD; Brown
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 5/8 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Hole Size inch | 0.40 in |
| Dimension - L Length Overall mm | 71 mm |
| Dimension - N inch | 0.41 in |
| Dimension - Pad Width inch | 0.68 in |
| Dimension - Z inch | 0.43 in |
| Dimension - B Length inch | 0.63 in |
|---|---|
| Dimension - Height inch | 1.04 in |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Length Overall inch | 2.78 in |
| Dimension - Outside Diameter inch | 0.46 in |
| Dimension - Strip Length inch | 11/16 |
| Physical Attribute - Tongue Angle | 45 Degree |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 3 (125/#24) DLO;2 (150/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 2 AWG |
| Conductor - Copper Flex K Size | 2 AWG |
| Conductor - Copper Solid Size | 2 AWG |
| Conductor - Copper Str Size | 2 AWG |
| Conductor - Material | Copper |
| Conductor - Copper Flex G Size | 2 AWG |
|---|---|
| Conductor - Copper Flex I Size | 2 AWG |
| Conductor - Copper Flex M Size | 2 AWG |
| Conductor - Copper Str Navy Size | 60 (37) Navy |
| Conductor - CopperWeld Str Size | 2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG |
General
| Color Code | Brown |
|---|---|
| Die Index | 10 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 2 |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810022252 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100222522 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 20 |
|---|
