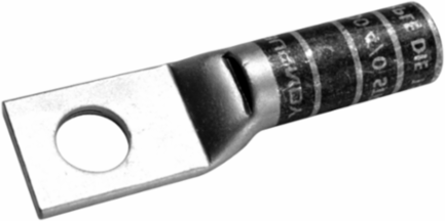

Burndy YAZV4CTC12FX Non-insulated Tin Plated Terminal HYLUGTM 4 AWG 1 Hole 2.67 Inch Long Barrel
- MPN: YAZV4CTC12FX
- UPC: 781810491010
- PPN: BUR-10105701
CAD
$11.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression long barrel flex conductor, single hole/W/ insp window, #4 weld(91/24)(105/24), 1/2" stud, Grey, 8 or 346 index.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-1/4 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Hole Size mm | 13 mm |
| Dimension - Length Overall inch | 2.67 in |
| Dimension - Outside Diameter inch | 0.38 in |
| Dimension - Strip Length inch | 1-5/16 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 1.25 in |
|---|---|
| Dimension - Hole Size inch | 0.53 in |
| Dimension - L Length Overall mm | 68 mm |
| Dimension - N inch | 0.53 in |
| Dimension - Pad Width inch | 0.71 in |
| Dimension - Z inch | 0.54 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 5 (91/#24) DLO;4 (105/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 4 AWG |
| Conductor - Copper Flex H Size | 4 AWG |
| Conductor - Copper Flex I Size | 4 AWG |
| Conductor - Copper Flex K Size | 4 AWG |
| Conductor - Copper Flex M Size | 4 AWG |
| Conductor - Copper Str Size | 4 AWG |
| Conductor - CopperWeld Str Size Range | 4 A AWG-4 P AWG |
| Conductor - Copper DLO Size Range | 5 (91/#24) DLO-4 (105/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 4 AWG |
| Conductor - Copper Flex H Size Range | 4 AWG |
| Conductor - Copper Flex I Size Range | 4 AWG |
| Conductor - Copper Flex K Size Range | 4 AWG |
| Conductor - Copper Flex M Size Range | 4 AWG |
| Conductor - CopperWeld Str Size | 4 A AWG;4 D AWG;4 N AWG;4 P AWG |
| Conductor - Material | Copper |
General
| Application | For Flex Conductors |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Skived |
| Material | Copper |
| Plated | Y |
| Sub Brand | TERMINALS, HYLUG |
| Type | Long Barrel, Skive |
| UPC 12 Digit | 7818104910100 |
| Color Code | Gray |
|---|---|
| Die Index | 8;346 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810491010 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 50 |
|---|
