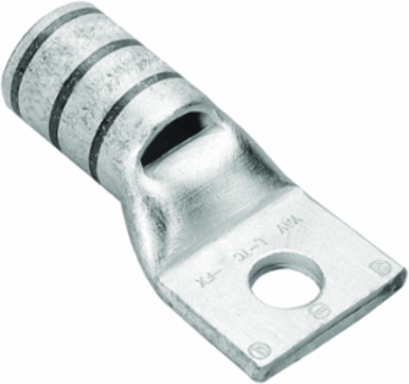

Burndy YA40LTC58FX Copper Terminal 1 Hole 0.66 Inch Bolt 3.68 Inch Length Tin Plated 35 kV
- MPN: YA40LTC58FX
- UPC: 781810033302
- PPN: BUR-510476
CAD
$246.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Tubing Terminal, 1 Hole W/insp window, 646.4 (1600/#24) DLO, 650 kcmil/Flex, 3.68 IN L, 24 Index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-7/16 in
- Dimension - Bolt Hole Size inch
- 0.66 in
- Dimension - Hole Size inch
- 0.69 in
- Dimension - L Length Overall mm
- 93 mm
- Dimension - N inch
- 0.66 in
- Dimension - Pad Width inch
- 1.98 in
- Dimension - Stud Size inch
- 5/8
- Dimension - Z inch
- 0.67 in
Dimension - B Length inch1.42 in
Dimension - Bolt Size fraction5/8
Dimension - Hole Size mm18 mm
Dimension - Length Overall inch3.68 in
Dimension - Outside Diameter inch1.35 in
Dimension - Strip Length inch1-5/16
Dimension - Thread Size5/8 in
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 646 Kcmil
- Conductor - Copper Flex H Size
- 650 Kcmil
- Conductor - Copper Flex K Size
- 650 Kcmil
- Conductor - Copper Str Size
- 400 mm2
Conductor - Copper Flex G Size650 Kcmil
Conductor - Copper Flex I Size650 Kcmil
Conductor - Copper Flex M Size650 Kcmil
Conductor - MaterialCopper
General
- Color Code
- Black
- Die Index
- 24
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810033302
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818100333022
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 20
