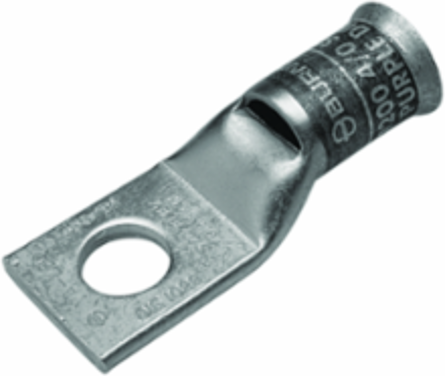

Burndy YA40TC58FXB HYLUGTM Long Barrel Connector, 1-38 Inch OD, 35 kV, Tin Plated, Copper
- MPN: YA40TC58FXB
- UPC: 781810053928
- PPN: BUR-510268
CAD
$160.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
UL Listed 90° C, 600 Volts to 35kV.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 3-1/4 in
- Dimension - Bolt Hole Size inch
- 0.66 in
- Dimension - Hole Size inch
- 0.69 in
- Dimension - L Length Overall mm
- 140 mm
- Dimension - N inch
- 0.66 in
- Dimension - Pad Width inch
- 1.98 in
- Dimension - Stud Size inch
- 5/8
- Dimension - Z inch
- 0.67 in
Dimension - B Length inch3.24 in
Dimension - Bolt Size fraction5/8
Dimension - Hole Size mm18 mm
Dimension - Length Overall inch5.53 in
Dimension - Outside Diameter inch1.38 in
Dimension - Strip Length inch3-5/16
Dimension - Thread Size5/8 in
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 646 (1600/#24)
- Conductor - Copper Flex G Size Range
- 650 kcmil
- Conductor - Material
- Copper
Conductor - Copper Flex G Size600 kcmil
Conductor - Copper Str Size400 mm2
General
- Color Code
- Black
- Die Index
- 24
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810053928
Connector TypeTerminal
Feature - Barrel StyleBelled
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
UPC 12 Digit7818100539288
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 6
