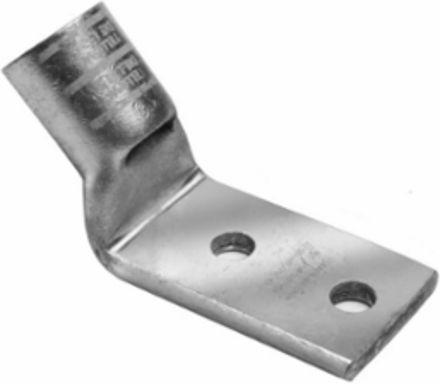

Burndy YA38TC58FXB45 HYLUGTM Long Barrel Terminal, 4.77 Inch Length, Tin Plated, 35 kV Rating
- MPN: YA38TC58FXB45
- UPC: 781810238585
- PPN: BUR-25020232
CAD
$208.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
UL Listed 90° C, 600 Volts to 35kV.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 3-1/16 in
- Dimension - Bolt Hole Size inch
- 0.66 in
- Dimension - Height inch
- 3.78 in
- Dimension - Hole Size mm
- 18 mm
- Dimension - Length Overall inch
- 4.77 in
- Dimension - Outside Diameter inch
- 1.25 in
- Dimension - Strip Length inch
- 3-3/16
- Physical Attribute - Tongue Angle
- 45 Degree
Dimension - B Length inch3.08 in
Dimension - Bolt Size fraction5/8
Dimension - Hole Size inch0.69 in
Dimension - L Length Overall mm121 mm
Dimension - N inch0.66 in
Dimension - Pad Width inch1.84 in
Dimension - Z inch0.53 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 535.3 (1325/#24)
- Conductor - Copper Flex G Size
- 535.3
- Conductor - Copper Flex H Size
- 535.3
- Conductor - Copper Flex I Size
- 535.3
- Conductor - Copper Flex K Size
- 535.3
- Conductor - Copper Flex M Size
- 535.3
Conductor - Copper DLO Size Range535.3 (1325/#24)
Conductor - Copper Flex G Size Range535.3
Conductor - Copper Flex H Size Range535.3
Conductor - Copper Flex I Size Range535.3
Conductor - Copper Flex K Size Range535.3
Conductor - MaterialCopper
General
- Color Code
- Pink
- Die Index
- L99
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin
- Type
- Long Barrel, Tin Plated
- UPC 12 Digit
- 7818102385855
Connector TypeTerminal
Feature - Barrel StyleBelled
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810238585
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 6
