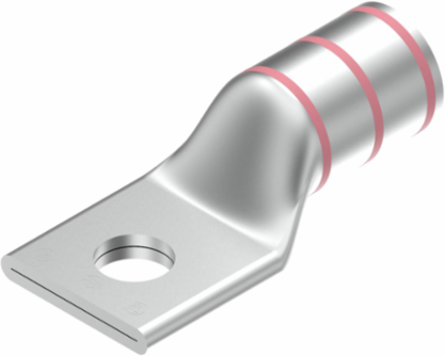

Burndy YAV25LTC516FX HYLUGTM Terminal Connector, 1/0 AWG, Tin Plated, 35 kV, 5/16 Inch Stud
- MPN: YAV25LTC516FX
- UPC: 781810021958
- PPN: BUR-518235
CAD
$13.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 1 Hole/W/InspWindow, 1/0 Weld, 1/0(275/#24)DLO Flex, 1/0 AWG Code, 100 Navy, 600 V-35 kV, 5/16" Stud, Std bbl.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 0.69 in |
|---|---|
| Dimension - Hole Size inch | 0.33 in |
| Dimension - L Length Overall mm | 46 mm |
| Dimension - N inch | 0.34 in |
| Dimension - Pad Width inch | 0.83 in |
| Dimension - Stud Size inch | 5/16 in |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Bolt Hole Size inch | 0.33 in |
|---|---|
| Dimension - Hole Size mm | 8 mm |
| Dimension - Length Overall inch | 1.81 in |
| Dimension - Outside Diameter inch | 0.56 in |
| Dimension - Strip Length inch | 11/16 in |
| Dimension - Z inch | 0.36 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 1/0 (275/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 1/0 AWG |
| Conductor - Copper Flex K Size | 1/0 AWG |
| Conductor - Copper Str Navy Size | 100 (61) Navy |
| Conductor - CopperWeld Str Size | 1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG |
| Conductor - Copper Flex G Size | 1/0 AWG |
|---|---|
| Conductor - Copper Flex I Size | 1/0 AWG |
| Conductor - Copper Flex M Size | 1/0 AWG |
| Conductor - Copper Str Size | 1/0 |
| Conductor - Material | Copper |
General
| Application | For Flex Conductors |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810021958 |
| Color Code | Pink |
|---|---|
| Die Index | 12 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Yes |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100219588 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
