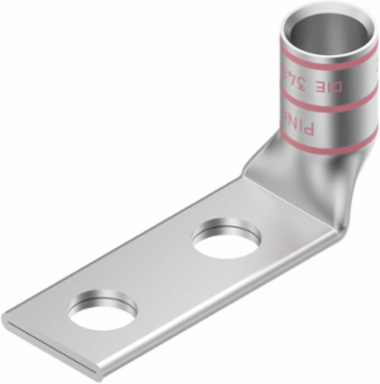

Burndy YAV25L2TC38FX90 HYLUGTM Non-Insulated Compression Terminal, 1/0 AWG, 2 Holes, 35 kV
- MPN: YAV25L2TC38FX90
- UPC: 781810034507
- PPN: BUR-518459
CAD
$28.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug, 2 Holes with Inspection Window, 1/0 AWG Flex,100 Navy, 600V-35kV, 3/8" stud, Standard, Compression, 0.40 in BCD, Pink.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 11/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.40 in |
| Dimension - Hole Size inch | 0.40 in |
| Dimension - L Length Overall mm | 57 mm |
| Dimension - N inch | 0.41 in |
| Dimension - Pad Width inch | 0.83 in |
| Dimension - Z inch | 0.43 in |
| Dimension - B Length inch | 0.69 in |
|---|---|
| Dimension - Height inch | 1.31 in |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Length Overall inch | 2.23 in |
| Dimension - Outside Diameter inch | 0.56 in |
| Dimension - Strip Length inch | 11/16 in |
| Physical Attribute - Tongue Angle | 90 Degree |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 1/0 (275/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 1/0 AWG |
| Conductor - Copper Flex H Size | 1/0 AWG |
| Conductor - Copper Flex I Size | 1/0 AWG |
| Conductor - Copper Flex K Size | 1/0 AWG |
| Conductor - Copper Flex M Size | 1/0 AWG |
| Conductor - Copper Solid Size | 1/0 AWG |
| Conductor - Copper Str Navy Size | 100 Navy |
| Conductor - Copper Str Size | 1/0 AWG |
| Conductor - CopperWeld Str Size | 1/0 WELD |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 1/0 (275/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 1/0 AWG |
| Conductor - Copper Flex H Size Range | 1/0 AWG |
| Conductor - Copper Flex I Size Range | 1/0 AWG |
| Conductor - Copper Flex K Size Range | 1/0 AWG |
| Conductor - Copper Flex M Size Range | 1/0 AWG |
| Conductor - Copper Solid Size Range | 1/0 AWG |
| Conductor - Copper Str Navy Size Range | 100 Navy |
| Conductor - Copper Str Size Range | 1/0 AWG |
| Conductor - CopperWeld Str Size Range | 1/0 WELD |
General
| Application | For use on copper compression connections |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 2 |
| Plated | Y |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| UPC | 781810034507 |
| Color Code | Pink |
|---|---|
| Die Index | 12 |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin |
| Temperature Rating | 194 |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100345077 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 25 |
|---|
