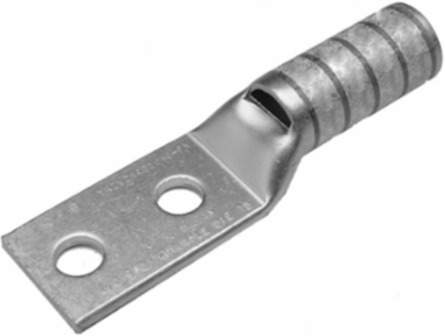

Burndy YAZV252TC38FX HYLUGTM Non-Insulated Terminal Connector, 1/0 AWG, 600V-35kV, 2 Holes, Tin Plated
- MPN: YAZV252TC38FX
- UPC: 781810175804
- PPN: BUR-25015219
CAD
$30.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 2 Hole/W/InspWindow, 1/0 Weld, 1/0(275/#24)DLO Flex, 1/0 AWG Code, 600 V-35 kV, 3/8" Stud, 1.00" Spacing, Lng bbl.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/2 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Hole Size inch
- 0.40 in
- Dimension - L Length Overall mm
- 96 mm
- Dimension - Length Side B inch
- 3.76 in
- Dimension - Outside Diameter inch
- 0.56 in
- Dimension - Strip Length inch
- 1-9/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.50 in
Dimension - Bolt Size fraction3/8
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch3.76 in
Dimension - N inch0.41 in
Dimension - Pad Width inch0.83 in
Dimension - Z inch0.43 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 1/0 (275/#24) DLO
- Conductor - Copper Flex H Size
- 1/0 AWG
- Conductor - Copper Flex K Size
- 1/0 AWG
- Conductor - Copper Str Size
- 1/0
- Conductor - Material
- Copper
Conductor - Copper Flex G Size1/0 AWG
Conductor - Copper Flex I Size1/0 AWG
Conductor - Copper Flex M Size1/0 AWG
Conductor - CopperWeld Str Size1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG
General
- Application
- For Flex Conductors
- Connector Type
- Terminal
- Feature - Barrel Style
- Skived
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Long Barrel, Skive
- UPC 12 Digit
- 7818101758044
Color CodePink
Die Index12;348
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin
Trade NameHYLUG™
UPC781810175804
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
