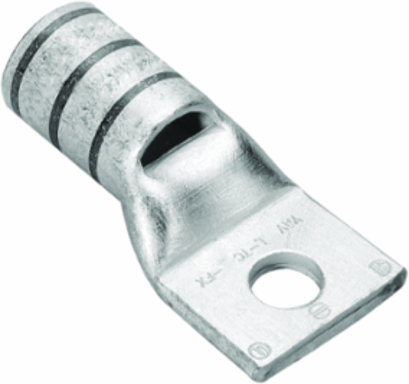

Burndy YAV28LTC14FX Non-Insulated Tin Plated Copper Terminal Connector, 4/0 AWG, 1/4 Inch Stud
- MPN: YAV28LTC14FX
- UPC: 781810022023
- PPN: BUR-518248
CAD
$23.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 1 Hole/W/InspWindow, 4/0 Weld, 4/0(550/#24)DLO Flex, 4/0 AWG Code, 200 Navy, 600 V-35 kV, 1/4" Stud, Std bbl.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size inch
- 0.27 in
- Dimension - L Length Overall mm
- 57 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 1.14 in
- Dimension - Stud Size inch
- 1/4
- Dimension - Z inch
- 0.33 in
Dimension - B Length inch1.03 in
Dimension - Bolt Size fraction1/4
Dimension - Hole Size mm7 mm
Dimension - Length Overall inch2.23 in
Dimension - Outside Diameter inch0.77 in
Dimension - Strip Length inch1-1/16
Dimension - Thread Size1/4 in
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 4/0 (550/#24) DLO
- Conductor - Copper Flex H Size
- 4/0 AWG
- Conductor - Copper Flex K Size
- 4/0 AWG
- Conductor - Copper Str Navy Size
- 200 (61) Navy
- Conductor - CopperWeld Str Size
- 4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG
Conductor - Copper Flex G Size4/0 AWG
Conductor - Copper Flex I Size4/0 AWG
Conductor - Copper Flex M Size4/0 AWG
Conductor - Copper Str Size4/0 AWG
Conductor - MaterialCopper
General
- Application
- For Flex Conductors
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818100220233
Color CodePurple
Die Index15
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin
Trade NameHYLUG™
UPC781810022023
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
