Burndy YAZ284TCG1 HYLUGTM Copper Terminal Connector, 4/0 AWG, 1/4 Inch Bolt Size, 1-11/16 Inch Strip Length
- MPN: YAZ284TCG1
- UPC: 781810636084
- PPN: BUR-50019034
CAD
$127.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

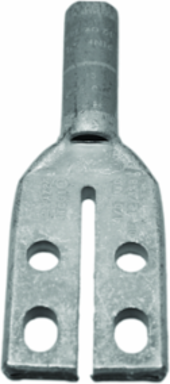

Cu Hylug,Split Pad, 4 Holes,W/Insp Window, 4/0 AWG Code, 200 Navy, Purple, 15 Index, 1/4 IN Bolt Size, 1-11/16 IN Strip Length
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.62 in
- Dimension - L Length Overall mm
- 99 mm
- Dimension - Pad Width inch
- 1.38 in
- Dimension - Stud Size inch
- 1/4
Dimension - Hole Size mm7 mm
Dimension - Length Overall inch3.91 in
Dimension - Strip Length inch1-11/16
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Size
- 4/0 AWG
Conductor - MaterialCopper
General
- Color Code
- Purple
- Die Index
- 15
- Feature - Barrel Type
- Standard
- Plated
- Yes
- Trade Name
- HYLUG™
- UPC
- 781810636084
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Plating TypeTin
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818106360844
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
