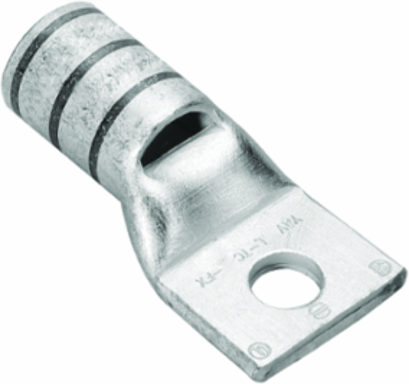

Burndy YAV29LTC58FX Standard Length Barrel Terminal 5/8 Inch Stud, 250 kcmil Copper, Yellow
- MPN: YAV29LTC58FX
- UPC: 781810323267
- PPN: BUR-10016249
CAD
$41.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1 hole Flex, 4/0 Flex Class (I, K, M), 250 AWG Code, 5/8" stud, Yellow, 16 Index, standard barrel
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1 in
- Dimension - Bolt Hole Size inch
- 0.66 in
- Dimension - Hole Size inch
- 0.69 in
- Dimension - L Length Overall mm
- 74 mm
- Dimension - N inch
- 0.66 in
- Dimension - Pad Width inch
- 1.18 in
- Dimension - Stud Size inch
- 5/8
- Dimension - Z inch
- 0.67 in
Dimension - B Length inch1.03 in
Dimension - Bolt Size fraction5/8
Dimension - Hole Size mm18 mm
Dimension - Length Overall inch2.92 in
Dimension - Outside Diameter inch0.80 in
Dimension - Strip Length inch1-1/16
Dimension - Thread Size5/8 in
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Flex I Size
- 4/0 AWG
- Conductor - Copper Flex M Size
- 4/0 AWG
- Conductor - Material
- Copper
Conductor - Copper Flex K Size4/0 AWG
Conductor - Copper Str Size250 kcmil
General
- Color Code
- Yellow
- Die Index
- 16
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818103232677
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810323267
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 20
