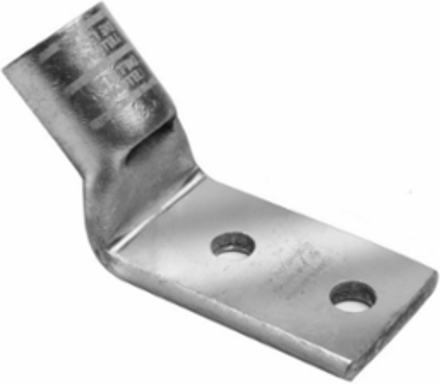

Burndy YAV2CL2TC14FX45 Non-Insulated Copper Hylug Terminal, 2 AWG, 35 kV, 2 Holes
- MPN: YAV2CL2TC14FX45
- UPC: 781810022214
- PPN: BUR-518442
CAD
$28.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug; 2 Holes with Inspection Window; #2 AWG Flex,60 Navy; 600V-35kV; 1/4" stud; Standard; Compression; 0.27 in BCD; Brown
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 5/8 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size inch
- 0.27 in
- Dimension - L Length Overall mm
- 56 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.68 in
- Dimension - Z inch
- 0.34 in
Dimension - B Length inch0.63 in
Dimension - Height inch1.04 in
Dimension - Hole Size mm7 mm
Dimension - Length Overall inch2.22 in
Dimension - Outside Diameter inch0.46 in
Dimension - Strip Length inch11/16
Physical Attribute - Tongue Angle45 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 3 (125/#24) DLO;2 (150/#24) DLO
- Conductor - Copper Flex H Size
- 2 AWG
- Conductor - Copper Flex K Size
- 2 AWG
- Conductor - Copper Solid Size
- 2 AWG
- Conductor - Copper Str Size
- 2 AWG
- Conductor - Material
- Copper
Conductor - Copper Flex G Size2 AWG
Conductor - Copper Flex I Size2 AWG
Conductor - Copper Flex M Size2 AWG
Conductor - Copper Str Navy Size60 (37) Navy
Conductor - CopperWeld Str Size2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG
General
- Color Code
- Brown
- Die Index
- 10
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810022214
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818100222144
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 20
