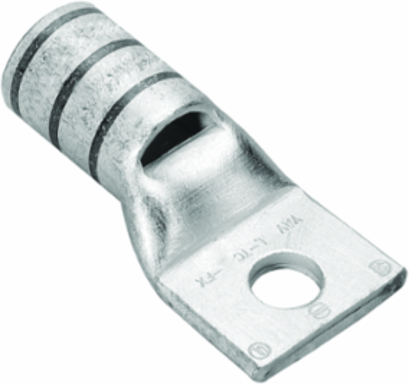

Burndy YAV2CLTC10FX Non-insulated Copper Hylug Terminal, 1 Hole, 0.21 in BCD, Tin Plated
- MPN: YAV2CLTC10FX
- UPC: 781810288023
- PPN: BUR-26003247
CAD
$15.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug, 1 Hole with Inspection Window, #2 WELD, 3(125/#24)-2(150/#24) DLO, #2 AWG Code, 60 Navy, 600V-35kV, #10 stud, Compression, 0.21 in BCD
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 5/8 in
- Dimension - Bolt Hole Size inch
- 0.20 in
- Dimension - Hole Size mm
- 5 mm
- Dimension - Length Overall inch
- 1.50 in
- Dimension - Outside Diameter inch
- 0.46 in
- Dimension - Strip Length inch
- 11/16
- Dimension - Z inch
- 0.27 in
Dimension - B Length inch0.63 in
Dimension - Hole Size inch0.21 in
Dimension - L Length Overall mm38 mm
Dimension - N inch0.25 in
Dimension - Pad Width inch0.68 in
Dimension - Stud Size inch#10
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 3 (125/#24) DLO;2 (150/#24) DLO
- Conductor - Copper Flex H Size
- 2 AWG
- Conductor - Copper Flex K Size
- 2 AWG
- Conductor - Copper Solid Size
- 2 AWG
- Conductor - Copper Str Size
- 2 AWG
- Conductor - Material
- Copper
Conductor - Copper Flex G Size2 AWG
Conductor - Copper Flex I Size2 AWG
Conductor - Copper Flex M Size2 AWG
Conductor - Copper Str Navy Size60 (37) Navy
Conductor - CopperWeld Str Size2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG
General
- Color Code
- Brown
- Die Index
- 10
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818102880233
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810288023
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
