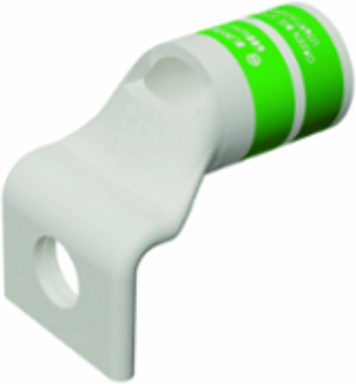

Burndy YA1CL490 Non-Insulated Tin Plated Terminal Connector, 1 AWG, 3/8 Inch Stud, Copper
- MPN: YA1CL490
- UPC: 781810235065
- PPN: BUR-25019855
CAD
$24.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu code conductor standard barrel, Single hole/W/ insp window, #1AWG, 3/8" stud, Tin plated, Green
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 1.16 in
- Dimension - Outside Diameter inch
- 0.46 in
- Dimension - Strip Length inch
- 15/16
- Dimension - Z inch
- 0.42 in
Dimension - B Length inch0.88 in
Dimension - D inch0.83 in
Dimension - L Length Overall mm29 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch0.68 in
Dimension - Stud Size inch3/8
Physical Attribute - Tongue Angle90 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 75 (37) Navy
- Conductor - Copper Str Size Range
- 1 AWG
Conductor - Copper Str Navy Size75 (37) Navy
Conductor - Copper Str Size1 AWG
Conductor - MaterialCopper
General
- Color Code
- Green
- Die Index
- 11
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- Type
- Standard Barrel, Tin Plated
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810235065
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 20
