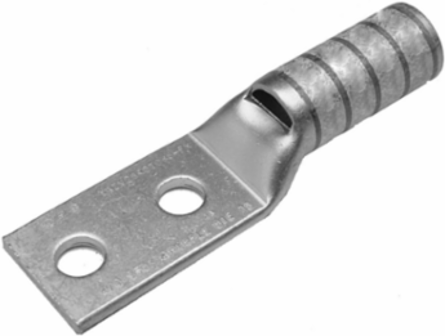

Burndy YAZV262TC38FX HYLUGTM Non-Insulated Terminal Connector, 2/0 AWG, Tin Plated, 600V-35kV
- MPN: YAZV262TC38FX
- UPC: 781810135327
- PPN: BUR-25003843
CAD
$35.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 2 Hole/W/InspWindow, 2/0 Weld,2/0(325/#24)DLO Flex, 2/0 AWG Code, 600 V-35 kV, 3/8" Stud, 1.00" Spacing, Lng bbl.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-1/2 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Hole Size inch | 0.41 in |
| Dimension - L Length Overall mm | 96 mm |
| Dimension - Length Side B inch | 3.76 in |
| Dimension - Outside Diameter inch | 0.63 in |
| Dimension - Strip Length inch | 1-9/16 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 1.50 in |
|---|---|
| Dimension - Bolt Size fraction | 3/8 |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Length Overall inch | 3.76 in |
| Dimension - N inch | 0.40 in |
| Dimension - Pad Width inch | 0.93 in |
| Dimension - Z inch | 0.43 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 2/0 (375/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 2/0 AWG |
| Conductor - Copper Flex H Size | 2/0 AWG |
| Conductor - Copper Flex I Size | 2/0 AWG |
| Conductor - Copper Flex K Size | 2/0 AWG |
| Conductor - Copper Flex M Size | 2/0 AWG |
| Conductor - Copper Str Size | 2/0 AWG |
| Conductor - CopperWeld Str Size Range | 2/0 F AWG-2/0 V AWG |
| Conductor - Copper DLO Size Range | 2/0 (375/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 2/0 AWG |
| Conductor - Copper Flex H Size Range | 2/0 AWG |
| Conductor - Copper Flex I Size Range | 2/0 AWG |
| Conductor - Copper Flex K Size Range | 2/0 AWG |
| Conductor - Copper Flex M Size Range | 2/0 AWG |
| Conductor - CopperWeld Str Size | 2/0 F AWG;2/0 G AWG;2/0 J AWG;2/0 K AWG;2/0 V AWG |
| Conductor - Material | Copper |
General
| Application | For Flex Conductors |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Skived |
| Material | Copper |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Long Barrel, Skive |
| UPC 12 Digit | 7818101353277 |
| Color Code | Black |
|---|---|
| Die Index | 13 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810135327 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
