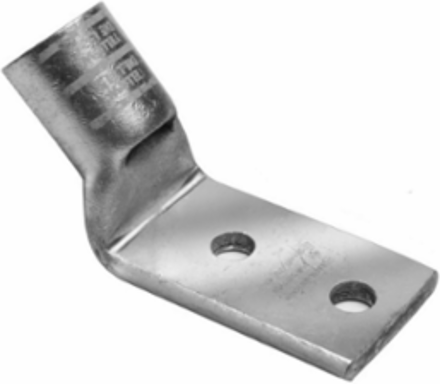

Burndy YA40L2NTCFX HYLUGTM Non-Insulated Terminal Connector, 600V 35kV, 2 Holes, 1/2 Inch Stud
- MPN: YA40L2NTCFX
- UPC: 781810056745
- PPN: BUR-510263
CAD
$180.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 2 Hole/W/InspWindow, 646 kcmil(1600/#24)DLO, 650 kcmil Flex, 600 V-35 kV, 1/2" Stud, 1.75" Spacing, Std bbl.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-7/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 137 mm |
| Dimension - N inch | 0.63 in |
| Dimension - Pad Width inch | 1.98 in |
| Dimension - Thread Size | 1/2 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 1.42 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 5.38 in |
| Dimension - Outside Diameter inch | 1.35 in |
| Dimension - Strip Length inch | 1-5/16 |
| Dimension - Z inch | 0.65 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 646 (1600/24) kcmil |
|---|---|
| Conductor - Copper Flex H Size | 650 Kcmil |
| Conductor - Copper Flex K Size | 650 Kcmil |
| Conductor - Material | Copper |
| Conductor - Copper Flex G Size | 650 Kcmil |
|---|---|
| Conductor - Copper Flex I Size | 650 Kcmil |
| Conductor - Copper Flex M Size | 650 Kcmil |
General
| Application | For Flex Conductor |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810056745 |
| Color Code | Black |
|---|---|
| Die Index | 24 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 2 |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100567455 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 5 |
|---|
