Documentation & Downloads

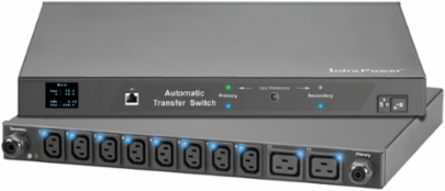

nVent Hoffman NPATS11002 RackPower Automatic Transfer Switch, 110V 20A 10 Rec, Black, Steel
- MPN: NPATS11002
- UPC: 783510393977
- PPN: HOF-NPATS11002
- UNSPSC: 39121017
CAD
$2548.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Rack Automatic Transfer Switches provide power redundancy to IT devices for second power source. This RackPower Automatic Transfer Switch, NPATS11002 item 110V 20A 10 Rec with a material of Steel colored Black.
Features
- Provides power redundancy to single-corded IT devices, ensuring there is no downtime that could be caused by power interruptions
- Devices automatically and seamlessly switch power sources when power loss is detected from the primary input
- Power inputs can be switched at the rack on the ATS itself or remotely over IP, saving time and resources
- Power metrics can be monitored remotely over IP to assist with capacity planning and improve overall efficiency
- Provide remote on/off outlet switching over network IP
- Free management software provided to remotely manage the ATS
- All units include monitoring, circuit monitoring and outlet switching
- Local meter is field replaceable 2.00 (51mm) color LCD
- Overload protection: Hydraulic-magnetic Miniature Circuit Breaker (MCB)
- Transfer time: 10ms
- Operating temperature: 23-140 F (-5-60 C)
- Operating humidity: 0~95%, non-condensing
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 450
- Nominal Voltage
- 110
- Material
- Mild Steel
- Color
- Jet Black
- Frequency
- 50 - 60 Hz
- Socket Quantity
- 10
- Plug Type
- NEMA L5-20P
- Weight
- 21
- Output Voltage
- 110 volt
- Wattage
- 2200 watt
- Receptacle
- 10x NEMA
- Display
- No
- Mounting
- Rack Mount 1U
- Cable Length
- 10 feet
- Length
- 17.72
- Height
- 1.71
- Insulation
- No
Height (H)44
Depth (D)442
Product FamilyRackPower
FinishPowder Coated
Color CodeRAL 9005
Electrical Load Rating20
Socket Type(10) NEMA
Rack Unit Quantity1
Input Voltage110 volt
Maximum Amperage Rating20 amp
Number of Receptacles10
ControlNo
EnclosureNo
Cable Size14 gauge
ConnectionL520 plug
Width17.4
Environmental ConditionsIndoor
