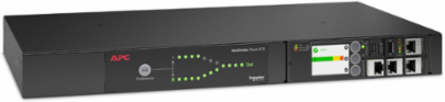

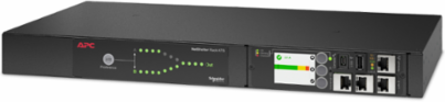

APC AP4434A Rack Automatic Transfer Switch, 1U, 20A, 208V, 8ft Cord, cUL/UL Listed
- MPN: AP4434A
- UPC: 731304432500
- PPN: APC-AP4434A
CAD
$2358.21
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4434A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4434A is single phase 1U Rack ATS with 20A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C20- inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Documentation & Downloads
Specifications
Additional
| Voltage | 208 V AC 1 phase |
|---|---|
| Load Capacity | 3300 VA |
| Height | 1.73 in (4.4 cm) |
| Depth | 9.29 in (23.6 cm) |
| Input Connection Type | IEC 60320 C20 16A 2P+E |
| Cord Length | 8 ft (2.44 m) |
| Lead Free | Yes |
| RoHS | Compliant |
| Storage Temperature Range | -13 to 149 6F (-25 to 65 6C) |
| Storage Relative Humidity | 5 to 95 % |
| Storage Altitude | 0 to 50,000 ft (0 to 15,240 m) |
| Customs Number | 8537109160 |
| Amperage | 20A |
|---|---|
| Rack Units | 1U |
| Width | 17.01 in (43.2 cm) |
| Weight | 8.25 lb (3.74 kg) |
| Mounting Position | front, rear, horizontal |
| Merury Free | Yes |
| Compliance | cUL Listed, CE, UL Listed |
| Operating Temperature Range | 23 to 113 6F (-5 to 45 6C) |
| Operating Relative Humidity | 5 to 95 % |
| Operating Altitude | 0 to 10,000 ft |
| Color | Black |
