APC AP4430A Automatic Transfer Switch, 1U, 20A, 200/208V, 8 C13, 1 C19 OUT
- MPN: AP4430A
- UPC: 731304432463
- PPN: APC-AP4430A
CAD
$2261.19
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

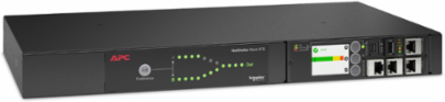

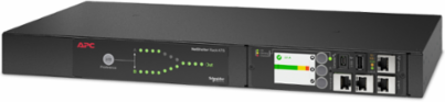

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4430A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4430A is single phase 1U Rack ATS with 20A rated current, 200V/208V rated voltage and 3300VA load capacity. For North America region, the Regulatory Derated Input Current is 16A. It comes with 2 NEMA L6-20P inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Documentation & Downloads
Specifications
Additional
| Voltage | 200 V AC 1 phase, 208 V |
|---|---|
| Load Capacity | 3300 VA |
| Protection Type | Without circuit breaker |
| Storage Temperature Range | -13 to 149 °F |
| Width | 17.01 in (43.2 cm) |
| Weight | 10.65 lb (4.83 kg) |
| Rack Height | 1U |
| Input Connection Type | NEMA L6-20P 16A 2P+E |
| Storage Altitude | 0 to 50000 ft |
| Storage Relative Humidity | 5 to 95 % |
| Mercury Free | Yes |
| Amperage | 20 A |
|---|---|
| Input Frequency | 50/60 Hz |
| Operating Temperature Range | 23 to 113 °F |
| Height | 1.73 in (4.4 cm) |
| Depth | 9.29 in (23.6 cm) |
| Cord Length | 8 ft (2.44 m) |
| Mounting Position | front, rear, horizontal |
| Operating Altitude | 0 to 10000 ft |
| Relative Humidity | 5 to 95 % |
| RoHS Compliance | Compliant with Exemptions |
| Lead Free | Yes |
