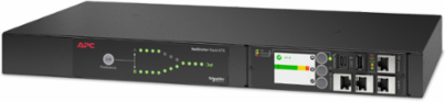

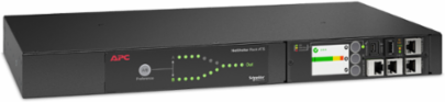

APC AP4450A Netshelter Rack Automatic Transfer Switch 1U 15A 100/120V 10 Outlets 8 ft Cord
- MPN: AP4450A
- UPC: 731304432517
- PPN: APC-AP4450A
CAD
$1940.30
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4450A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4450A is single phase 1U Rack ATS with 15A rated current, 100V/120V rated voltage and 1440VA load capacity. For North America region, the Regulatory Derated Input Current is 12A. It comes with 2 NEMA 5-15P inlet and 10 NEMA 5-15R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Features
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Documentation & Downloads
Specifications
Additional
| Amperage | 15A |
|---|---|
| Load Capacity | 1440 VA |
| Protection Type | Without circuit breaker |
| Storage Temperature Range | -13° to 149 °F (-25° to 65 °C) |
| Storage Humidity Range | 5% to 95% |
| Storage Altitude | 0 to 50,000 ft |
| Number of Outlets | 10 NEMA 5-15R |
| Input Connection Type | NEMA 5-15P 12A 2P+E |
| Width | 17.01 in (43.2 cm) |
| Weight | 9.70 lb (4.4 kg) |
| RoHS | Compliant with Exemptions |
| California Proposition 65 | Prop 65 Warning - contains DINP, cancer risk |
| Lead Free | Yes |
| Customs Number | 8537109160 |
| Warranty | 24 months |
| Voltage | 100 V AC 1 phase, 120 V |
|---|---|
| Input Frequency | 50/60 Hz |
| Operating Temperature Range | 23° to 113 °F (-5° to 45 °C) |
| Operating Humidity Range | 5% to 95% |
| Operating Altitude | 0 to 10,000 ft |
| Rack Unit Size | 1U |
| Cable Length | 8 ft (2.44 m) |
| Height | 1.73 in (4.4 cm) |
| Depth | 9.29 in (23.6 cm) |
| Mount Position | front, horizontal |
| Approvals | PSE, T V-C, T V-NURTL, VCCI Class A, FCC Part 15 Class A, ICES-003 |
| WEEE | Must be disposed in EU per regulations |
| Mercury Free | Yes |
| Product Orientation | no preference |
