Square D

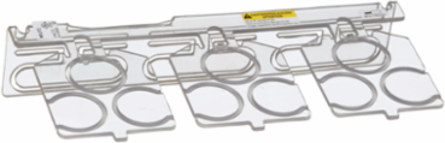

Square D MGJTC Terminal shield, PowerPacT M, I-Line, circuit breaker, 800A, 3 pole

Terminal shield, PowerPacT M, I-Line, circuit breaker, 800A, 3 pole
  • MPN: MGJTC
  • UPC: 785901677192
  • PPN: SCH-MGJTC

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$575.22/ EA

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This terminal shield is used with PowerPacT M circuit breakers. Rated at 800A and 3 pole.

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1407017EN
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions

Complementary

[In] Rated Current
800-800 A
Product Destinationcircuit breaker OFF end

Specifications

Range Of Product
I-Line
Product Or Component Type
shielding kit
Circuit Breaker TypeM-frame
