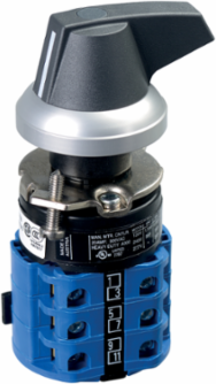

Schmersal 101195860 RWSE6K.1 Step Switch, 6 Positions, IP65, 5,500W AC-3 Capacity, 32mm Height
Schmersal 101195860 RWSE6K.1 Step Switch, 6 Positions, IP65, 5,500W AC-3 Capacity, 32mm Height
- MPN: 101195860
- PPN: SCM-101195860
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$402.23/ EA
Specifications
Electrical data
- Thermal test current
- 20 A
- Switching capacity, AC-23
- 7,500 W
Switching capacity, AC-35,500 W
Mechanical data - Dimensions
- Height
- 32 mm
- Diameter of the front ring
- 39.5 mm
- Diameter of the knob
- 54 mm
- Thickness, of the front panel, minimum
- 1.5 mm
- Spacing
- 50 x 50 mm
Mounting depth69.5 mm
Length of the handle34 mm
Mounting diameter22.3 mm
Thickness of the front panel, maximum6 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 690 V
General data - Features
- Latching
- Yes
- Number of switch positions
- 6
Fully insulatedYes
General data
- Versions
- Toggle
- Sealing type
- Membrane | Lip gaskets
- Material of the front ring
- Aluminium
- Colour of the handle
- Grey
Togglelong
Material of the operatorsPlastic
Colour of the front ringSilver
Gross weight170 g
Ambient conditions
- Degree of protection
- IP65
Ambient temperature+0 ... +80 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
Mechanical data
- switching angle
- 60 °
- Tightening torque of the screw
- 0.6 Nm
Mountingmounting flange
Specifications
- Height
- 32 mm
