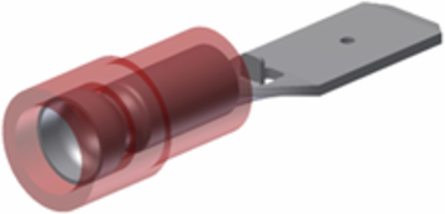

Burndy QN18M25X03B Nylon Male Quick Disconnect, 22-18 AWG (.25x.03), Sleeved Barrel, Funnel Entry, Bulk Packaged
- MPN: QN18M25X03B
- UPC: 781810292723
- PPN: BUR-10005106
- UNSPSC: 39121447
CAD
$0.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Nylon Male Quick Disconnect For 22 - 18 AWG (.25 x .03), Bulk Packaged
Features
- Sleeved barrel
- Funnel entry barrel opening assures quick and easy wire insertion
- Mates with dimpled female socket detent ensuring firm grip
Specifications
Key Specifications
| Country of Origin | Taiwan |
|---|---|
| Dimension - Strip Length inch | 3/8 in |
| Dimension - Width mm | 6 mm |
| Insulation Type | Nylon |
| Plating Type | Tin |
| Standards - Industry Standards Met | UL467 |
| Trade Name | FINGRIP™ |
| Standard | UL467 |
| Conductor Range | #22 AWG to #16 AWG |
| Conductor Type | CU C Str-Size |
| Class Code | B57 |
| Harmonization Code | 8536904000 |
| Lead Time | 11 wk |
| UL Listed | No |
| Voltage - Maximum | 300 V |
| BOX SIZE | 4.625x4.313x4.313 (in) |
| Carton - Number of Sub Packs | 1000 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00781810292723 |
| Case - SCC-14 Next Lower Level Sub Pack | 30781810292724 |
| Package - Total Units | 1000 EA |
| Package Weight | 0.000 lb. |
| Pallet Height | 47.375 in |
| Pallet Weight | 1827.000 lb. |
| Standard Package Quantity | 1000 |
| Dimension - Length Overall inch | 0.87 in |
|---|---|
| Dimension - Width inch | 0.25 in |
| Industry Standard(s) | UL467 |
| Plated | Yes |
| Product Type | Terminal |
| Standards - RoHS Compliance Status | CM |
| Insulation | Y |
| Type | Disconnect Connectors |
| Conductor Size | 22 - 18 AWG |
| Connector Type | Male Quick Disconnect |
| Freight Class Code | 16027000 |
| Image Actual Or Representative | A |
| Sub Class Code | B57BL7F |
| Material | Brass |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1000 |
| Package - GTIN - Package | 30781810292724 |
| Package Quantity | 1000 EA |
| Pallet - GTIN - Package | 70781810292722 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| NAICS Code | 3359319103 |
Certifications
| CSA Approved | No |
|---|---|
| ETL | No |
| cULus | No |
|---|---|
| UL Recognized | No |
