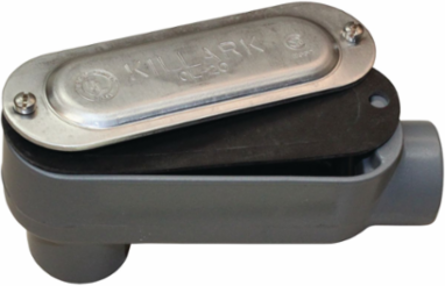

Killark OLB-0CG Aluminum Conduit Body With Cover & Gasket, 4 Inch Hub, 324 Cu. In. Volume
Killark OLB-0CG Aluminum Conduit Body With Cover & Gasket, 4 Inch Hub, 324 Cu. In. Volume
- MPN: OLB-0CG
- UPC: 783936481784
- PPN: HBL-OLB-0CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1282.62/ EA
Description
O Series/Duraloy 5 Series - Aluminum Conduit Body With Cover And Gasket- LB Type - Hub Size 4 Inch - Volume 324.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 324 cu. in.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 7.630 in
- Color
- Gray
- Hub Size
- 4"
- Special Features
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 324 cu. in.
- Width
- 7.63 in
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 8.25
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936481784
Dimensions15.88 in x 7.63 in x 5.5 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height5.5 in
Length15.88 in
TypeConduit Body With Cover & Gasket
ARRA CompliantContact Manufacturer
Description - InvoiceBODY,CVR,GASK 4" LB AL
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Hub PatternLB
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
