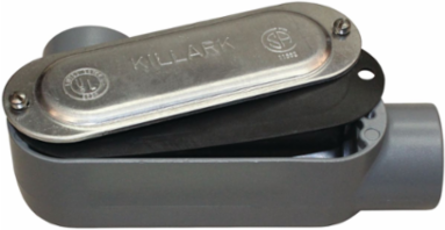

Killark OLL-5CG Aluminum Conduit Body LL Type 1-1/2 Inch Hub, 36 Cubic Inches Volume
- MPN: OLL-5CG
- UPC: 783936480077
- PPN: HBL-OLL-5CG
- UNSPSC: 39131708
CAD
$218.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
O Series/Duraloy 5 Series - Aluminum Conduit Body With Cover And Gasket- LL Type - Hub Size 1-1/2 Inch - Volume 36.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 36 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Hub Size
- 1-1/2"
- Type
- Conduit Body With Cover & Gasket
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 1.575
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 8
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936480077
- Item Package Type
- K-PAK (cover & gasket included)
- NAICS Code
- 3359323110
Width3.500 in
ColorGray
Special FeaturesTapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 36 cu. in.
ARRA CompliantContact Manufacturer
Description - InvoiceBODY,CVR,GASK 1-1/2" LL AL
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Hub PatternLL
Base Unit of MeasureEA
Carton - Gross Weight per Pack15.680 lb.
Carton - Pack DescriptionCarton
Carton - Total Units8 EA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
