Killark OLL-0 4 Inch LL Hub Aluminum Conduit Body, Tapered Threaded Hubs, Raintight, 324 cu. in. Volume
- MPN: OLL-0
- UPC: 783936490502
- PPN: HBL-OLL-0
- UNSPSC: 39131708
CAD
$1302.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

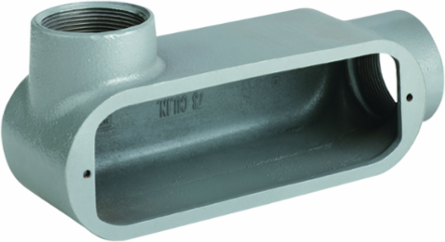

4" LL Hub, Aluminum O Series Conduit Body
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 324 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Hub Size
- 4"
- Special Features
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 324 cu. in.
- Width
- 7.25 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 4 "LL" TYPE AL CONDUIT BODY
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 9.32
- UL File Number
- E3397
- Series
- O Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions15.75 in x 7.25 in x 6 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height6 in
Length15.75 in
TypeConduit Body
Engineering Drawing 1 Display TextOLL-0 Engineering Drawing
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternLL
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936490502
NAICS Code3359323110
Certifications
- EU RoHS Indicator
- Contact Manufacturer
