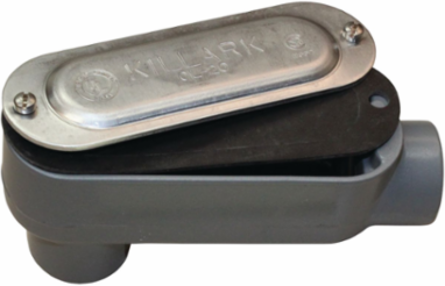

Killark OLB-6CG-S Aluminum Conduit Body 2 Inch Hub, 70 Cu. In Volume with Cover and Gasket
Killark OLB-6CG-S Aluminum Conduit Body 2 Inch Hub, 70 Cu. In Volume with Cover and Gasket
- MPN: OLB-6CG-S
- UPC: 783936530321
- PPN: HBL-OLB-6CG-S
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$282.38/ EA
Description
O Series/Duraloy 5 Series - Aluminum Conduit Body With Cover And Silicone Gasket - LB Type - Hub Size 2 Inch - Volume 70.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 70 cu. in.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 3.000 in
- Color
- Gray
- Hub Size
- 2"
- Special Features
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 70 cu. in.
- Width
- 3 in
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 2.45
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- BOX SIZE
- 5.250x17.750x11.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936530321
- Master Pack Description
- Each
Dimensions1 in x 3 in x 3 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Height3 in
Length1 in
TypeConduit Body With Cover & Gasket
ARRA CompliantContact Manufacturer
Description - InvoiceOLB-6CG W/SILICONE GASKET
Harmonization Code7609000000
Lead Time42 wk
Order Multiple5 EA
Sub Class CodeD30D230
Hub PatternLB
Base Unit of MeasureEA
Carton - Gross Weight per Pack12.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
