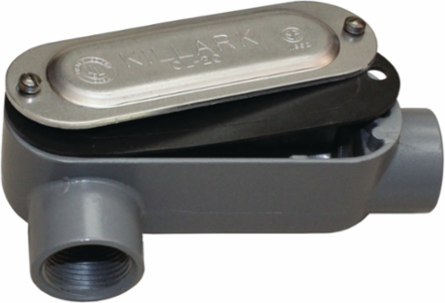

Killark OLR-5CG-S Aluminum Conduit Body with Cover & Gasket, Hub Size 1-1/2 Inch, Volume 31 Cubic Inches
- MPN: OLR-5CG-S
- UPC: 783936530475
- PPN: HBL-OLR-5CG-S
- UNSPSC: 39131708
CAD
$196.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
O Series/Duraloy 5 Series - Aluminum Conduit Body With Cover And Silicone Gasket - LR Type - Hub Size 1-1/2 Inch - Volume 31.0 Cubicinches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 31 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Finish
- Powder Epoxy Paint
- Hub Size
- 1-1/2"
- Special Features
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 31 cu. in.
- Width
- 3 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 1.68
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.680 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 15
- NAICS Code
- 3359323110
Dimensions10.25 in x 3 in x 5.375 in
ColorGray
Height5.375 in
Length10.25 in
TypeConduit Body With Cover & Gasket
Cover TypeStamped
ARRA CompliantContact Manufacturer
Description - InvoiceOLR-5CG W/SILICONE GASKET
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Hub PatternLR
SeriesO Series
BOX SIZE5.375x10.250x3.000 (in)
Carton - Number of Sub Packs15
Carton - SCC-14 Next Lower Level Sub Pack00783936530475
Master Pack DescriptionEach
