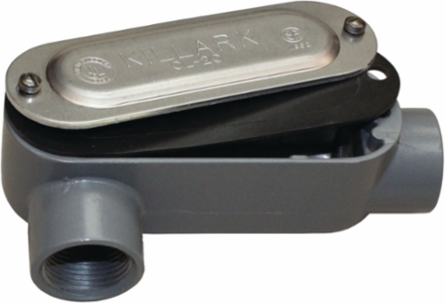

Killark OLR-1CG-S Aluminum Conduit Body with Cover & Gasket, LR Type, Hub Size 1/2 Inch, Volume 4 Cubic Inches
- MPN: OLR-1CG-S
- UPC: 783936530437
- PPN: HBL-OLR-1CG-S
- UNSPSC: 39131708
CAD
$69.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
O Series/Duraloy 5 Series - Aluminum Conduit Body With Cover And Silicone Gasket - LR Type - Hub Size 1/2 Inch - Volume 4.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 4 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 0.1 in
- Length
- 5 in
- Type
- Conduit Body With Cover & Gasket
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- OLR-1CG W/SILICONE GASKET
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LR
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 13.600 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 40 EA
- NAICS Code
- 3359323110
Dimensions5 in x 10 in x 0.1 in
ColorGray
Hub Size1/2"
Special FeaturesTapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 4 cu. in.
Width10 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.34
MaterialAluminum, Copper Free (less than 4/10 of 1%)
BOX SIZE9.000x15.625x6.625 (in)
Carton - Number of Sub Packs40
Carton - SCC-14 Next Lower Level Sub Pack00783936530437
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
