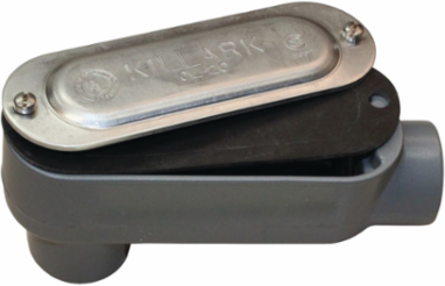

Killark OLB-8CG-S Aluminum Conduit Body with Cover & Gasket, Hub Size 3 Inch, Volume 173 Cubic Inches
- MPN: OLB-8CG-S
- UPC: 783936530345
- PPN: HBL-OLB-8CG-S
- UNSPSC: 39131708
CAD
$778.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
O Series/Duraloy 5 Series - Aluminum Conduit Body With Cover And Silicone Gasket - LB Type - Hub Size 3 Inch - Volume 173.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 173 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 5 in
- Length
- 15.25 in
- Type
- Conduit Body With Cover & Gasket
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- OLB-8CG W/SILICONE GASKET
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LB
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936530345
- Master Pack Description
- Each
Dimensions15.25 in x 7 in x 5 in
ColorGray
Hub Size3"
Special FeaturesTapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 173 cu. in.
Width7 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging3.63
MaterialAluminum, Copper Free (less than 4/10 of 1%)
BOX SIZE5.000x15.250x7.000 (in)
Carton - Total Units1 EA
NAICS Code3359323110
Certifications
- EU RoHS Indicator
- Contact Manufacturer
