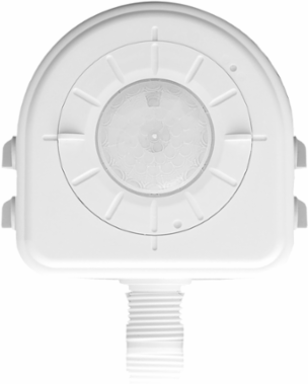

Leviton HB011-BD2 Occupancy Sensor with Dimmer for High/Low Bay, 347V, Fixture Mount, 1.58 Inch Height
Leviton HB011-BD2 Occupancy Sensor with Dimmer for High/Low Bay, 347V, Fixture Mount, 1.58 Inch Height
- MPN: HB011-BD2
- UPC: 078477728352
- PPN: LEV-HB011-BD2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$132.41/ EA
Description
Occupancy Sensor, High Bay, Fixture Mount, lighting control with Daylight Harvesting – PIR technology, Single relay with one (1-10VDC sinking current) control line for use to connect directly to low voltage control ballast. Examples i.e. Advance Mark VII or Leviton Sector 7, ballast. 42" Leads, 347V, 60Hz. Color: White, Bulk Packed
Features
- 1-100% continuous dimming control
- Specifically designed for LED fixture control
- Suitable for use in standard cold storage applications
- Visual RGB LED indicators for device status and troubleshooting
- Alternating relay software for increased lamp life
- UL listed for electronic ballast loads 120/277V
- Occupancy Sensor , Fixture Mount Passive Infrared High/Low Bay, Time Delay: 30s-30m, (2) interchangeable, adjustable 360° lenses, the high bay PIR lens provides 1.5:1 spacing to mounting height coverage for 21-40 ft, the low bay lens provides 2:1 spacing to mounting height coverage for 13-20 ft, 347VAC, UL Listed, meets energy code requirements for ASHRAE 90.1 and Title 24. Do you have a question about an occupancy sensor or vacancy sensor?
Specifications
Standards and Certifications
- Listings
- UL 773A, CSA 22.2 No. 205 M1983, FCC Certified, meets energy code requirements for ASHRAE Standard 90.1
Performance Specifications
- Coverage (Sq.Ft.)
- 8-40
Pattern360°
Mechanical Specifications
- Color
- White
- Grade
- Commercial
- Sensor Mounting Configuration
- External
ConstructionHigh-impact, injection-molded plastic
Mounting TypeFixture Mount
SizeHeight 1.58" (40.13mm), Width 4.34" (110.24mm) , Length 4.44" (112.78mm)
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Application
- Warehouses|Manufacturing facilities|Production|Industrial areas|High ceiling applications
- Feature
- High Bay / Low Bay Dimming and Occupancy Sensing
- Product Line
- HB011
- Sensor Type
- Occupancy and Photocell
CommissioningManual
MountingFixture Mount
Sensor TechnologyPassive Infrared (PIR) and Photocell
Time Delay30s-30m
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Environment
- Indoor
- Storage Temperature Range
- -40° to 122°F (-40° to 50°C)
Relative Humidity20% to 75% non-condensing
Electrical Specifications
- Dimming Technology
- 0-10VDC
- Load Rating
- see data sheet
- Voltage
- 347 VAC
Frequency60Hz
Neutral Wire ConnectionRequired
WiringLine-Black, Load-Red, Neutral-White (42" Leads)
Type
- Product Type
- Occupancy Sensor and Photocell
