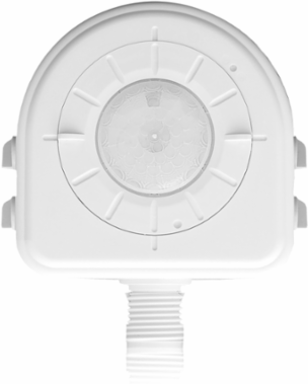

Leviton HB011-PD2 Occupancy Sensor, Dimming, Fixture Mount, High Bay/Low Bay, PIR, 347V, 21" Leads, White

Occupancy Sensor, Dimming, Fixture Mount, High Bay/Low Bay, PIR, 347V, 21" Leads, White
  • MPN: HB011-PD2
  • UPC: 078477728338
  • PPN: LEV-HB011-PD2

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$139.04/ EA

Description

Occupancy Sensor, High Bay, Fixture Mount, lighting control with Daylight Harvesting – PIR technology, Single relay with one (1-10VDC sinking current) control line for use to connect directly to low voltage control ballast. Examples i.e. Advance Mark VII or Leviton Sector 7, ballast. 21" Leads, 347V, 60Hz. Color: White

Features

  • 1-100% continuous dimming control
  • Specifically designed for LED fixture control
  • Suitable for use in standard cold storage applications
  • Visual RGB LED indicators for device status and troubleshooting
  • Alternating relay software for increased lamp life
  • UL listed for electronic ballast loads 120/277V
  • Occupancy Sensor , Fixture Mount Passive Infrared High/Low Bay, Time Delay: 30s-30m, (2) interchangeable, adjustable 360° lenses, the high bay PIR lens provides 1.5:1 spacing to mounting height coverage for 21-40 ft, the low bay lens provides 2:1 spacing to mounting height coverage for 13-20 ft, 347VAC, UL Listed, meets energy code requirements for ASHRAE 90.1 and Title 24. Do you have a question about an occupancy sensor or vacancy sensor?

Specifications

Standards and Certifications

Listings
UL 773A, CSA 22.2 No. 205 M1983, FCC Certified, meets energy code requirements for ASHRAE Standard 90.1

Performance Specifications

Coverage (Sq.Ft.)
8-40
Pattern360°

Mechanical Specifications

Color
White
Grade
Commercial
Sensor Mounting Configuration
External
ConstructionHigh-impact, injection-molded plastic
Mounting TypeFixture Mount
SizeHeight 1.58" (40.13mm), Width 4.34" (110.24mm) , Length 4.44" (112.78mm)

Specifications

Country of Origin
China
RoHS CompliantFalse

Product Features

Application
Warehouses|Manufacturing facilities|Production|Industrial areas|High ceiling applications
Feature
High Bay / Low Bay Dimming and Occupancy Sensing
Product Line
HB011
Sensor Type
Occupancy and Photocell
CommissioningManual
MountingFixture Mount
Sensor TechnologyPassive Infrared (PIR) and Photocell
Time Delay30s-30m

Warranty

Warranty
5-Year Limited

Environmental Specifications

Environment
Indoor
Storage Temperature Range
-40° to 122°F (-40° to 50°C)
Relative Humidity20% to 75% non-condensing

Electrical Specifications

Dimming Technology
0-10VDC
Load Rating
see data sheet
Voltage
347 VAC
Frequency60Hz
Neutral Wire ConnectionRequired
WiringLine-Black, Load-Red, Neutral-White (21" Leads)

Type

Product Type
Occupancy Sensor and Photocell

Downloads
