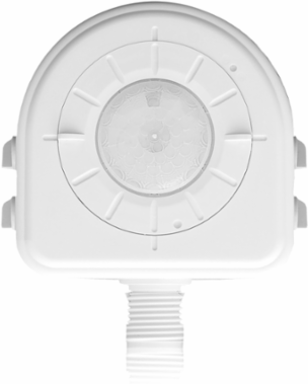

Leviton HB011-PDX Occupancy Sensor, Dimming, Fixture Mount, High Bay/Low Bay, PIR, 120-277V, 21" Leads
- MPN: HB011-PDX
- UPC: 078477718049
- PPN: LEV-HB011-PDX
CAD
$117.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Occupancy Sensor, High Bay, Fixture Mount, lighting control with Daylight Harvesting– PIR technology, Single relay with one (1-10VDC sinking current) control line for use to connect directly to low voltage control ballast. Examples i.e. Advance Mark VII or Leviton Sector 7, ballast. 21" Leads, 120-277V, 50/60Hz. Color: White
Features
- 1-100% continuous dimming control
- Specifically designed for LED fixture control
- Suitable for use in standard cold storage applications
- Visual RGB LED indicators for device status and troubleshooting
- Alternating relay software for increased lamp life
- UL listed for electronic ballast loads 120/277V
- Occupancy Sensor , Fixture Mount Passive Infrared High/Low Bay, Time Delay: 30s-30m, (2) interchangeable, adjustable 360° lenses, the high bay PIR lens provides 1.5:1 spacing to mounting height coverage for 21-40 ft, the low bay lens provides 2:1 spacing to mounting height coverage for 13-20 ft, 120-230-277 or 347VAC, UL Listed, meets energy code requirements for ASHRAE 90.1 and Title 24. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| Listings | UL 773A, CSA 22.2 No. 205 M1983, FCC Certified, meets energy code requirements for ASHRAE Standard 90.1 |
|---|
Performance Specifications
| Coverage (Sq.Ft.) | 8-40 |
|---|
| Pattern | 360° |
|---|
Mechanical Specifications
| Color | White |
|---|---|
| Grade | Commercial |
| Sensor Mounting Configuration | External |
| Construction | High-impact, injection-molded plastic |
|---|---|
| Mounting Type | Fixture Mount |
| Size | Height 1.58" (40.13mm), Width 4.34" (110.24mm) , Length 4.44" (112.78mm) |
Product Features
| Application | Warehouses|Manufacturing facilities|production|Industrial areas|High ceiling applications |
|---|---|
| Feature | High Bay / Low Bay Dimming and Occupancy Sensing |
| Product Line | HB011 |
| Sensor Type | Occupancy and Photocell |
| Commissioning | Manual |
|---|---|
| Mounting | Fixture Mount |
| Sensor Technology | Passive Infrared (PIR) and Photocell |
| Time Delay | 30s-30m |
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Environment | Indoor |
|---|---|
| Storage Temperature Range | -40° to 122°F (-40° to 50°C) |
| Relative Humidity | 20% to 75% non-condensing |
|---|
Electrical Specifications
| Dimming Technology | 0-10VDC |
|---|---|
| Load Rating | see data sheet |
| Voltage | 120-277 VAC |
| Frequency | 50/60Hz |
|---|---|
| Neutral Wire Connection | Required |
| Wiring | Line-Black, Load-Red, Neutral-White (21" Leads) |
Type
| Product Type | Occupancy Sensor and Photocell |
|---|
