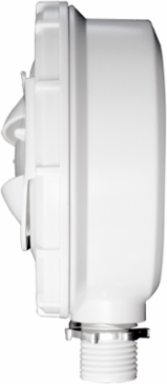

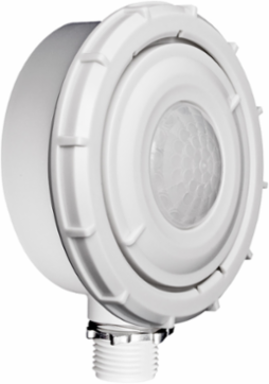

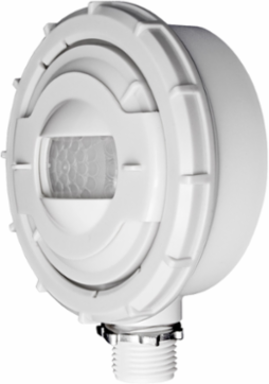

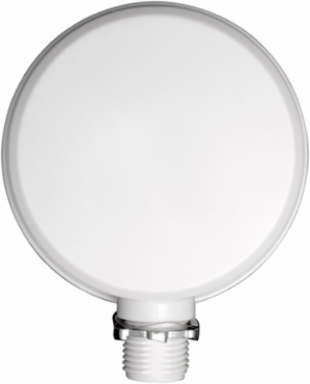

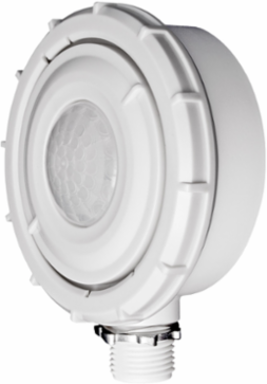

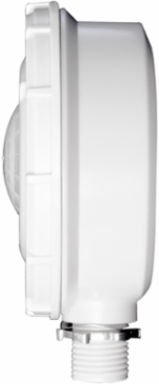

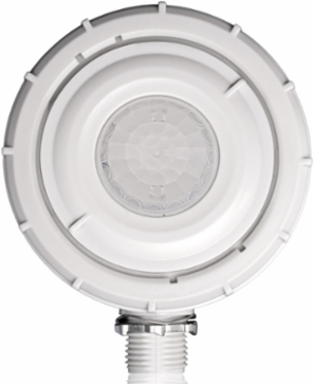

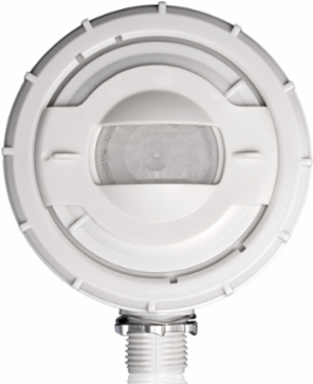

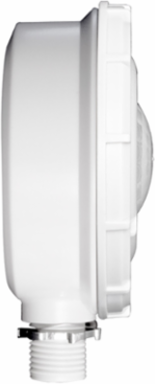

Leviton OSFHW-CTW Occupancy Sensor Fixture Mount, PIR, 360° Lens, IP65 Rated, 4.75 Inch Height
- MPN: OSFHW-CTW
- UPC: 078477746868
- PPN: LEV-OSFHW-CTW
CAD
$120.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fixture Mount PIR High Bay Wet Location External Occupancy Sensor lighting control, 7.5 inch wire lead length, interchangeable adjustable 360 degree low-bay (8FT-20FT), and high-bay (20FT-40FT) lenses, blue, aisle mask
Features
- IP65 Rated
- Quicksnap locking mechanism built into the 1/2” nipple allows for the fastest and easiest mounting not requiring a threaded lock-nut
- Unit includes interchangeable 360° high-bay (20-40’) and 360° low-bay (8-25’)lenses and an aisle mask accessory
- Time delay can be set can be set at any time without requiring power to the sensor; time delay is variable from 30 sec-30 min
- “Instant ON” closing relay fires lamps in under 5 seconds
- Zero crossing circuitry optimizes relay operation for reliable, long-life operation robust mechanical latching relay is durable for all load types
- Automatically adjusts the PIR sensitivity as ambient temperature rises to increase detection of heat movement through the field-of-view
- For safety and energy savings, the OSFHW contains a latching relay—in the event that power is lost to the device, the device will return to the last known state of the relay
- For increased energy savings and to mitigate nuisance tripping, the super-bright LED indicates advanced detection has been activated and the lights will only turn ON when true occupancy has been determined
- The Fixture Mount PIR High-Bay Wet Location External Occupancy Sensor (OSFHW) is ideal for damp or wet locations such as supermarket meat departments, food processing plants, parking garages and other wash down, high ceiling applications. The OSFHW features a IP65 rating for indoor and outdoor locations and is designed to withstand dust and pressure washers. The sensor comes with two interchangeable lenses for use in either a 360 degree high-bay or 360 degree low-bay general area and includes an aisle mask accessory. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Listings
- UL and cUL Listed, IP65 rated. Can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 occupancy sensing requirements
Title 24 CompliantYes
Performance Specifications
- Mounting Height (Ft.)
- Up to 40 FT
Pattern360°
Mechanical Specifications
- Color
- White
- Grade
- Commercial
- Mounting Type
- Fixture Mount
- Size
- Height 4.75" (120.65mm), Width 3.75" (95.25mm)
ConstructionHigh-impact, injection molded plastic housing
IP RatingIP65
Sensor Mounting ConfigurationExternal
Product Features
- Application
- Wet location, Supermarket meat departments, food processing plants, parking garages, high ceiling applications
- Mounting
- Fixture Mount
- Sensor Technology
- Passive Infrared (PIR)
- Time Delay
- 30s-30m
CommissioningManual
Product LineOSFHW
Sensor TypeOccupancy
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Environment
- Wet
- Storage Temperature Range
- -14° to 60°F (-25° to 71°C)
Relative Humidity20% to 90% non-condensing
Electrical Specifications
- Frequency
- 50/60Hz
- Neutral Wire Connection
- Required
- Wiring
- Line-Black, Load-Red, Neutral-White
Load Rating800VA @ 120VAC Ballast, 1200VA @ 277VAC Ballast, 1500VA @ 347VAC Ballast, Motor: 1/4 HP Load @ 120V
Voltage120-347 VAC
Type
- Product Type
- Occupancy Sensor
