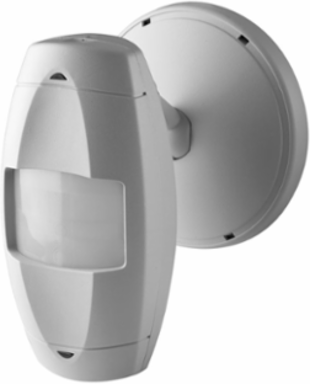

Leviton OSWLR-I0W Occupancy Sensor PIR Low Voltage Wall Mount 100' Coverage 24VDC
- MPN: OSWLR-I0W
- UPC: 078477188354
- PPN: LEV-OSWLR-I0W
CAD
$310.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Long Range, PIR, Occupancy Sensor lighting control, Wall Mounted, 24VDC, 15mA power consumption, 10' mounting height, 100' length x 30' width (major motion only), Red LED=PIR, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', Patented Canopy Knuckle for versatile wall and ceiling mounting options, cUL/NOM/ANCE listed, Color: off-white
Features
- Combines PIR Technology with a microprocessor based digital architecture. By eliminating false triggering, the sensor provides a trouble-free "install and forget" solution for lighting control
- Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation, and long term performance
- Adjustable swivel neck rotates 80 degrees vertically and 60 degrees horizontally. Can be used for ceiling or wall mounting
- Ambient light override prevents lights from turning on when there is ample natural light
- Self-Adjusting delayed-off time interval settings for 30 seconds to 30 minutes. Compensates for real-time occupancy patterns- preventing unnecessary on/off switching
- Non-volitile memory preserves all automatic and manual settings during power outages.
- Fast, simple installation using 3 color-coded low-voltage wires and a single mounting post
- Excellent 5-Year Limited warranty
- Typical Applications: Long narrow spaces such as Warehouse Aisles, Hallways and Corridors where a low mounting height is desireable
- Specifically designed for long, relatively narrow spaces such as hallways and corridors, the OSWLR-I occupancy sensor provides long range and high sensitivity. The OSWLR-I occupancy sensor is a “long range” lens. This lens provides coverage up to 100 ft. When mounted 10 ft. Above the floor. Can be mounted lower if needed. The mounting base, provided with the sensor, allows quick and easy mounting in corners, on walls or on ceilings. The most common applications are factory storage areas, warehouse aisles and corridors. The OSWLR-I Sensor combines PIR technology with a microprocessor based digital architecture. By eliminating false triggering, the sensor provides a trouble-free “install and forget” solution for lighting control . Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- Listings
- cUL/US Certified, can be used to comply with ASHRAE 90.1 and Title 24, Part 6 occupancy sensing requirements
USMCA CompliantYes
Performance Specifications
- Coverage (Sq.Ft.)
- 100FT x 14FT @ 10FT Height
Mechanical Specifications
- Mounting Type
- Wall Mount
SizeHeight 6.43" (163.32mm), Depth 4.67" (118.61mm), Sensor Width 2.80" (71.12mm), Base Width 4.23" (107.44mm)
Product Features
- Application
- Cafeterias, Hallways, Loading docks, Open offices, Parking garages, Storage rooms, Warehouses, Workspaces, Vending rooms
- Feature
- Aisle Long Range
- Mounting
- Wall Mount
- Product Line
- OSWLR
- Sensor Type
- Occupancy
ColorWhite
GradeCommercial
Mounting Height (Ft.)8-10 FT
Sensor TechnologyPassive Infrared (PIR)
Time Delay30s-30m
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 32° to 104°F (0° to 40°C)
Relative Humidity0% to 95% non-condensing
Electrical Specifications
- Line Voltage
- No
- Power Consumption
- 15mA AC, 30mA DC
- Voltage Type
- Low Voltage
Output Voltage24 VDC active high logic control signal with short circuit protection
Voltage24 VDC
Type
- Product Type
- Occupancy Sensor
