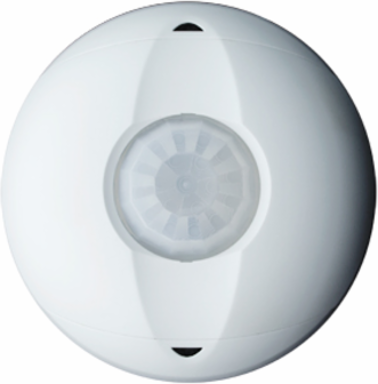

Leviton ZSC04-INW Wireless Occupancy Sensor, Ceiling Mount, 450 Sq Ft, PIR, 4.20 Inch Width
- MPN: ZSC04-INW
- UPC: 078477725443
- PPN: LEV-ZSC04-INW
CAD
$299.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

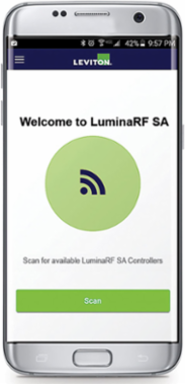

Requires DLDNK LuminaRF Stand Alone Room Controller or 74A00-1 Lumina Gateway to operate. Lumina RF 2, Sensor, Low Profile, Surface Mount, 450 sq/ft Field of View, 15 Second Transmitter, Color: White
Features
- Zero external power required
- Self-healing wire mesh network has no hard wired backbone and connects all products in the Lumina RF Eco-System together
- Robust and reliable true wireless sensors communicate with all Lumina RF transceivers via radio frequency
- Battery-powered wireless technology eliminates the need to pull additional wire, making installation quick and easy and increasing labor savings with little to no impact to business during conversion
- Walk-test mode
- Easy mounting
- Advanced field-of-view
- Meets Title 24, ASHRAE 90.1 and 2012 IECC energy code requirements
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- Listings
- FCC ID: W7Z-ZICM357SP0, IC: 854A-ZICM357SP0, IC Certified (Canada) Listed. Can be used as a component in a system to meet energy code requirements for IECC, ASHRAE 90.1, and Title 24
Performance Specifications
- Coverage (Sq.Ft.)
- 450.0

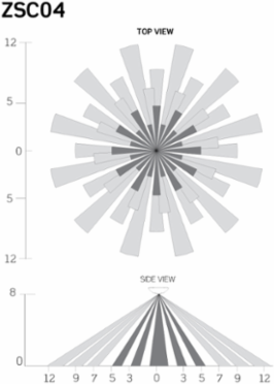

- Pattern
- 360°
Frequency Range75 FT
Mechanical Specifications
- Mounting Type
- Ceiling Mount

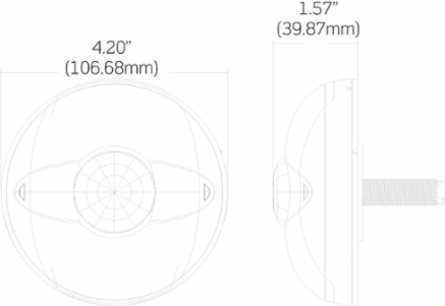

SizeWidth 4.20" (106.68mm), 1.57" Depth (39.87mm)
Product Features
- Battery
- 7-10 years
- Feature
- Wireless
- Mounting
- Ceiling Mount
- Product Line
- Lumina RF
- Sensor Type
- Occupancy
ColorWhite
GradeCommercial
Mounting Height (Ft.)8-12 FT
Sensor TechnologyPassive Infrared (PIR)
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Storage Temperature Range
- -4° to 158°F (-20° to 70°C)
Relative Humidity0% to 95% non-condensing
Electrical Specifications
- Frequency
- 2.4 Ghz
Type
- Product Type
- Wireless Occupancy Sensor
