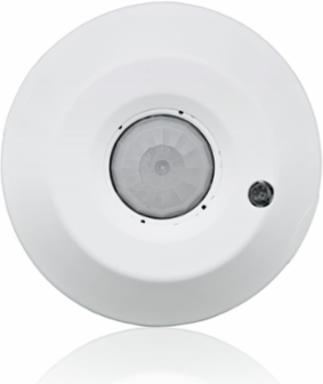

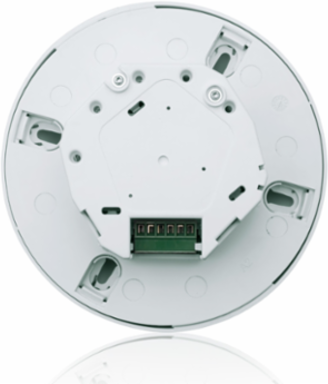

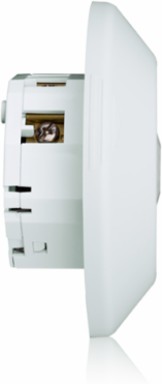

Leviton O2C04-IDW Occupancy Sensor with Integrated Photocell, Dual Relay, 450 Sq Ft Coverage, 120-277V
- MPN: O2C04-IDW
- UPC: 078477642634
- PPN: LEV-O2C04-IDW
CAD
$323.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Discontinued Product. Occupancy Sensor with Photocell, Provolt™ Lighting Control, 2 Pole, Line Voltage, 8'-12' Ceiling Mount, Passive Infrared, 450 sq ft, Daylighting, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC Title 20/24 compliant. Color: White
Features
- Uses industry-exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC systems. A Fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor.
- Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
- Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF
- Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time
- Exclusive Walk-through Feature: Provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- False Detection Timer: (M/T) The PIR scans for movement and shuts lights off after 31 minutes preventing false triggers from HVAC systems
- Output short circuit protection
- Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
- Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied
- Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
- Test Mode for simplified commissioning
- Manual Switch and Emergency Override are Class 1 and Class 2 circuits. Class 2 circuits provided for flexibility
- Industry-exclusive “fail-safe” circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
- Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
- Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
- Lenses are easily replaceable and color-coded blue (high-density) and red (mid-range) for contractors and end-users to easily identify lenses from the ground: Red Visual LED indicator - Blinks when infrared is detecting motion and during photocell manual calibration; solid during device malfunction, Yellow Visual LED indicator - Blinks during test mode; solid with emergency/BMS input, Blue Visual LED indicator - Blinking light indicates photocell override
- The Leviton Provolt ™ Series combine line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| Listings | Can be used to comply with ASHRAE 90.1 and California Title 24, Part 6 occupancy/vacancy sensing, automatic shut-off, daylight harvesting and stairwell requirements, UL 773A (Occupancy Standard), UL 924 (Emergency Equipment), cUL listed, CE compliant, NOM certified, RoHS compliant, NY LLC48 compliant |
|---|
Performance Specifications
| Coverage (Sq.Ft.) | 450 |
|---|---|
| Title 24 Compliant | Yes |
| Pattern | 360° |
|---|
Mechanical Specifications
| Mounting Type | Ceiling Mount |
|---|---|
| Size | Width 4.81" (122.21mm), Depth 2.39" (60.71mm) |
| Relay Type | Dual Relay |
|---|
Product Features
| Application | Code Compliance|Auto ON/Auto OFF|Manual ON/Auto OFF|Fan Control|Auto ON/Manual ON|Stairwell Control|Step dimming |
|---|---|
| Feature | PIR Line Voltage Dual Relay |
| Mounting | Ceiling Mount |
| Sensor Technology | Passive Infrared (PIR) |
| Time Delay | 30s-30m |
| Color | White |
|---|---|
| Grade | Commercial |
| Product Line | Provolt |
| Sensor Type | Occupancy, Photocell |
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | 32° to 104°F (0° to 40°C) |
|---|---|
| Storage Temperature Range | -15° to 160°F (-26° to 71°C) |
| Relative Humidity | 0% to 90% non-condensing |
|---|
Electrical Specifications
| Current Consumption | 60-30mA |
|---|---|
| Load Rating | 120V, 50/60Hz: 8A, Electronic Ballast, 800W, Tungsten, 800VA Ballast, 1/4 HP Motor - 230V, 50Hz: 6A/6AX, Electronic Ballast, Magnetic Ballast, Tungsten, 1/3 HP Motor - 277V, 50/60Hz: 5A, Electronic Ballast, 1200VA Ballast, 1/3 HP Motor |
| Voltage | 120/230/277 VAC |
| Frequency | 50/60Hz |
|---|---|
| Neutral Wire Connection | Required |
Type
| Product Type | Occupancy Sensor and Photocell |
|---|
