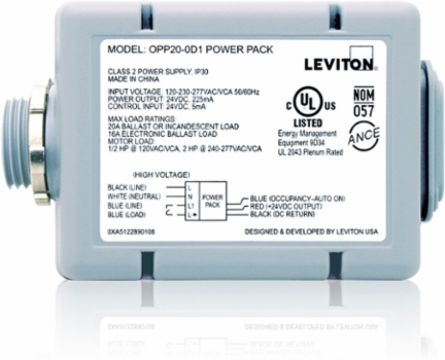

Leviton OPP20-D1 Super Duty Occupancy Sensor Power Pack 20A, 120/277VAC, Latching Relay, Gray
- MPN: OPP20-D1
- UPC: 078477634042
- PPN: LEV-OPP20-D1
CAD
$75.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20A Standard Power Pack for Occupancy Sensors, features include Auto ON, Latching Relay; Line Voltage Input: 120/208/220/230/240/277V, 50/60Hz; Low Voltage: Input-24VDC, 2mA, Output-24VDC, 225mA. Housing: 1/2" Threaded nipple w/locknut (fits on or in a 4" sqr box), RoHS Compliant, Title 24 Compliant, ASHRAE 90.1 Compliant, Color: Gray
Features
- First true industry-exclusive “fail safe” design assures lights ON meeting life safety requirements of NFPA 101
- Robust power pack meets intense plug load control requirements of CA Title 24/ASHRAE 90.1
- Industry exclusive Switched Daylighting Power Pack models for use with Wall Switches, Occupancy Sensors and Photocells
- Robust and reliable mechanical latching relays specifically designed to operate LED’s and high inrush electronic ballast loads
- Surpasses industry standards for short circuit protection (NEMA 410 16 Amp ballast overload testing)
- Tested to exceed 1.5 million switching cycles under standard load
- Built in manual ON switching control to meet CA Title 24 standards
- Models support a wide range of applications including switched daylighting, occupancy sensing control, bi-level switching, and metering/mechanical applications
- The Leviton OPP20 Super Duty Power Pack is the first power pack designed to control virtually any lighting or receptacle circuit load to meet today’s challenges for solid state lighting control and tougher code requirements for unmatched performance and durability. The Power Pack models are cost-effective with simplified energy management tools for daylight harvesting and energy management. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Additional
- Voltage
- 120/230/277 VAC, 50/60 Hz
- Relay Type
- Latching
- Motor Load Rating 240/277V
- 2 HP
- Dimensions
- 2.40 in H x 3.81 in W x 1.43 in D
- Material
- High impact UL rated plastic
- Sensor Type
- Power Pack
- Country of Origin
- China
- Relative Humidity
- 0 to 90%, non-condensing, indoor use only
Amperage20A
Motor Load Rating 120V1/2 HP
Thread Size1/2 in
Neutral Wire ConnectionRequired
ColorGray
Product LineOPP20
Operating Temperature Range32 to 122°F (0 to 50°C)
ComplianceUL/cUL Listed, FCC Certified, NOM Certified, Title 24 Compliant
