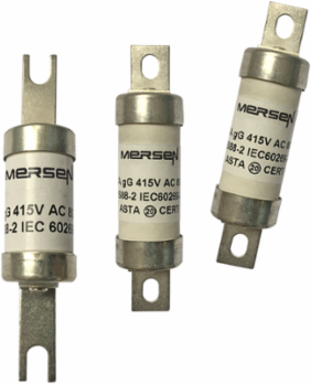

Mersen F1019181 Offset Tag Fuse-Links gG 100A 415V AC / 240V DC, 0.83 Inch Diameter
- MPN: F1019181
- PPN: FER-F1019181
CAD
$9.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The fuse complies with standard EN 60269-2 section II and standard BS 88 part 2. These fuses are designed for : “General purpose use” protection (gG type). This fuse range insures an excellent current limitation for all overloads on a large range of applications. Their size cannot allow exchange by other fuses of higher rating in their range. They are screwed into fuseholders or bolted directly onto busbars, or in fuse interruptors disconnectors.
Specifications
Key Specifications
- Rated voltage AC IEC
- 415 V
- Ampere Rating
- 100 A
- AC or DC
- AC/DC
- Fuse Size
- A3
- Clearing I2t At Rated Voltage
- 65000 A²s
- AC Max I.R./Breaking Capacity: I1
- 80 kA
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- Ceramic
- Width
- 0.89 in
- Weight
- 0.13 lb
Rated voltage DC IEC240 V
ROHS CompliantYes
Speed/CharacteristicgG
MountingBolted
Melting I2t14000 A²s
Max. Rated Breaking Capacity DC40 kA
Connection/Terminal TypeOffset Tag
Power Dissipation at Rated Current Value7.5 W
Length3.43 in
