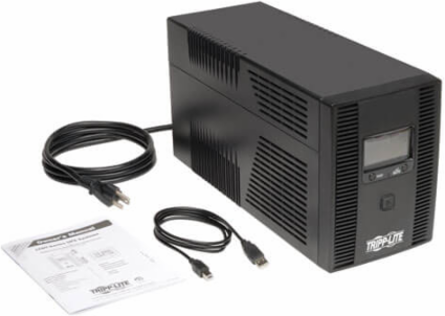

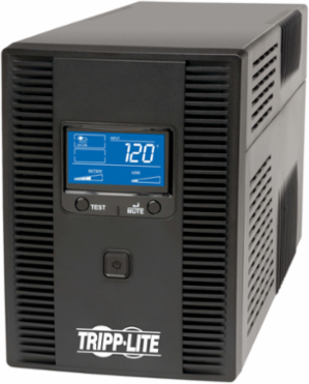

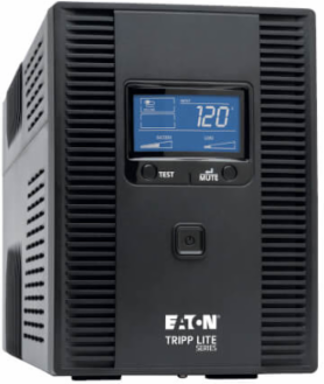

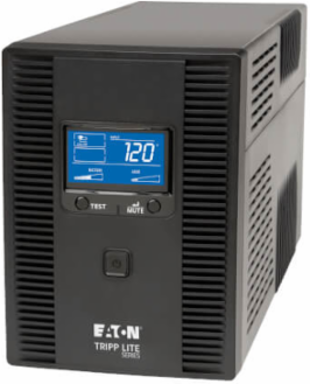

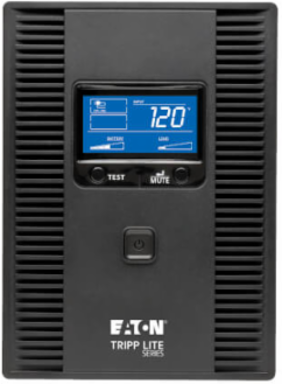

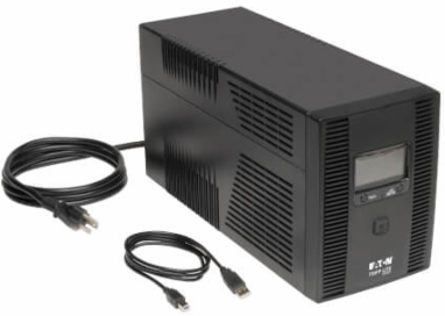

Tripp Lite OMNI1500LCDT OmniSmart LCD 120V 50/60Hz 1500VA 810W Line-Interactive UPS, Tower, LCD display, USB port, Energy Star V2.0
Tripp Lite OMNI1500LCDT OmniSmart LCD 120V 50/60Hz 1500VA 810W Line-Interactive UPS, Tower, LCD display, USB port, Energy Star V2.0
- MPN: OMNI1500LCDT
- UPC: 037332173249
- PPN: TRP-OMNI1500LCDT
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$525.74/ EA
Description
OmniSmart LCD 120V 50/60Hz 1500VA 810W Line-Interactive UPS, Tower, LCD display, USB port, Energy Star V2.0
Features
- 1500VA / 1.5kVA tower 120V line interactive UPS with LCD display
- Maintains battery derived AC output during power failures
- Corrects brownouts and overvoltages from 92-150V
- LCD interface offers detailed UPS status and site power information
- USB interface, TEL/DSL/ethernet and coax line surge suppression
- NEMA 5-15P input plug and 10 NEMA 5-15R outlets
- ENERGY STAR Version 2.0 qualified
- 3-year limited warranty
- $250,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 650
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Half Load Runtime (min.)
- 7.5 minutes (405 watts)
- Battery Recharge Rate (Included Batteries)
- Less than 8 hours from 10% to 90%
- Expandable Runtime
- No
DC System Voltage (VDC)24
Internal UPS Replacement Battery CartridgeRBC51 (requires 2)
Certifications
- UPS Certifications
- ENERGY STAR Qualified; Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsENERGY STAR Version 2.0 Qualified
Physical
- Cooling Method
- Fan
- Primary Form Factor
- Tower
- Primary UPS Height (mm)
- 203
- Shipping Dimensions (hwd / in.)
- 11.20 x 9.10 x 19.40
- UPS Power Module Dimensions (hwd, in.)
- 8 x 5.75 x 15.6
- UPS Power Module Weight (lbs.)
- 25.4
Installation Form Factors Supported with Included AccessoriesTower
Primary UPS Depth (mm)396
Primary UPS Width (mm)146
Shipping Weight (lbs.)25.10
UPS Power Module Weight (kg)11.52
User Interface, Alerts & Controls

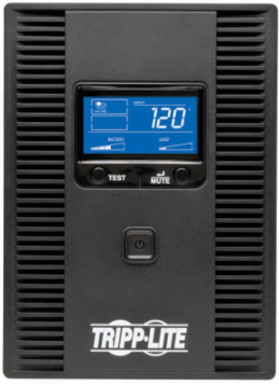

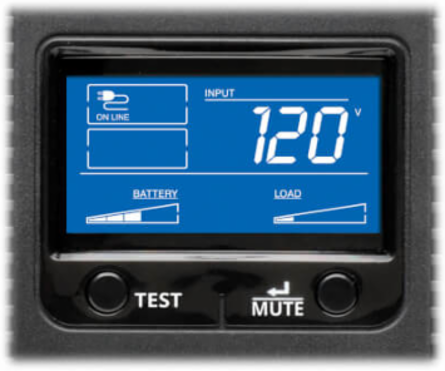

- Front Panel LCD Display

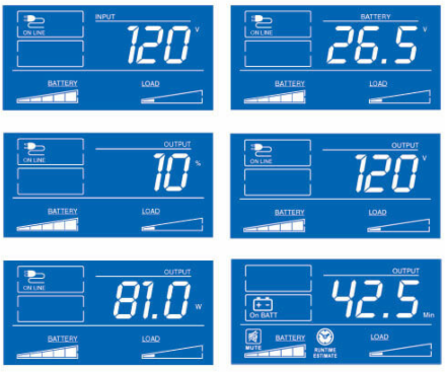

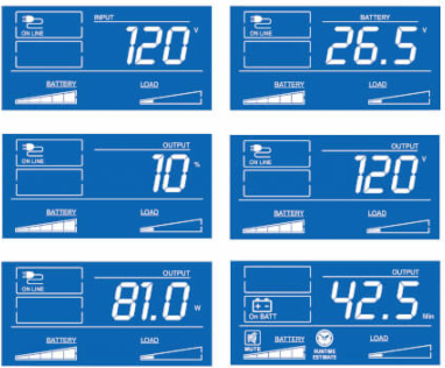

- LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Battery voltage and Estimated runtime in minutes
- Alarm Cancel Operation
- Power-fail alarm can be silenced using alarm-cancel switch
SwitchesPower switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test
Audible AlarmAudible alarm indicates power-failure and low-battery conditions
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150
- Undervoltage Correction
- Input voltages between 92 and 108 are boosted by 18%
Overvoltage CorrectionInput voltages between 129 and 147 are reduced by 15%
Input
- Rated input current (Maximum Load)
- 12A
- UPS Input Connection Type
- 5-15P

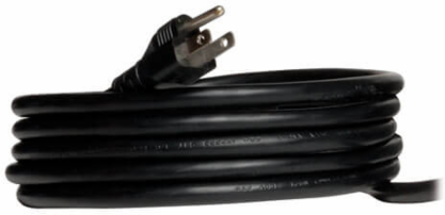

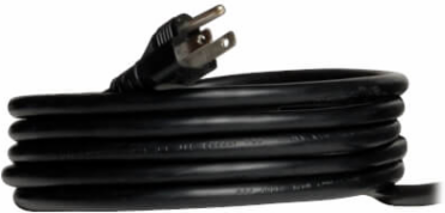

- UPS Input Cord Length (ft.)
- 6
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers15A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 1500
- Output Watt Capacity (Watts)
- 810
- Frequency Compatibility
- 50 / 60 Hz
- Output Voltage Regulation (Line Mode)
- 120V (+9% / -12%)
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Hot-Swap PDU options
- PDUB15 (2U / 8 5-15R outlets)
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Receptacles
- (10) 5-15R
Output kVA Capacity (kVA)1.5
Nominal Voltage Details120v nominal output in battery mode
Frequency Compatibility DetailsAutomatic frequency selection
Output Voltage Regulation (Economy Line Mode)120V (±10%)

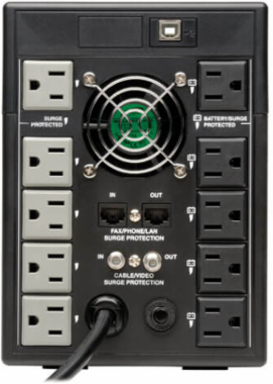

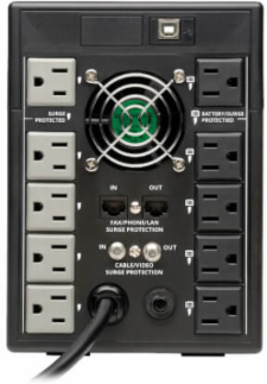

UPS Output Receptacles (Surge Suppression Only)5 UPS outlets, 5 surge-only outlets
Output AC Waveform (AC Mode)Sine wave
Nominal Output Voltage(s) Supported110V; 115V; 120V
Individually Controllable Load BanksNo
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Communications Interface
- USB (HID enabled)
Communications CableUSB cabling included
Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 5 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 826
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)98
AC Mode Efficiency Rating (100% Load)95%
Overview
- UPC Code
- 037332173249
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesHot swappable batteries
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 2 milliseconds (AC to battery mode), 6 milliseconds (battery to AC mode)
- High Voltage Transfer to Battery Power (Setpoint)
- 150
Low Voltage Transfer to Battery Power (Setpoint)92
