Tripp Lite OMNI900LCD OmniSmart LCD 120V 900VA 475W Line-Interactive UPS, Tower, LCD display, USB port
Tripp Lite OMNI900LCD OmniSmart LCD 120V 900VA 475W Line-Interactive UPS, Tower, LCD display, USB port
- MPN: OMNI900LCD
- UPC: 037332125156
- PPN: TRP-OMNI900LCD
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$430.15/ EA
Description
OmniSmart LCD 120V 900VA 475W Line-Interactive UPS, Tower, LCD display, USB port
Features
- 900VA tower 120V line interactive UPS with LCD display
- Corrects brownouts as low as 89V without using battery power
- LCD screen reports input voltage, battery charge and UPS status
- USB port, Surge-only outlets, 97% efficiency

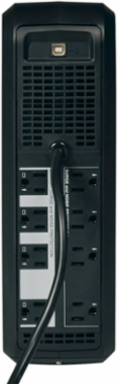

- NEMA 5-15P input plug and 8 NEMA 5-15R outlets
- 3-year limited warranty
- $200,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 870
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 3 min. (475w)
- DC System Voltage (VDC)
- 12
- Internal UPS Replacement Battery Cartridge
- RBC51
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)10 min. (240w)
Battery Recharge Rate (Included Batteries)Less than 16 hours from 10% to 90%
Battery AccessBattery access door
Expandable RuntimeNo
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); ROHS (Restriction of Hazardous Substances)
Physical
- Installation Form Factors Supported with Included Accessories
- Tower
- Primary UPS Depth (mm)
- 183
- Primary UPS Width (mm)
- 94
- Shipping Weight (lbs.)
- 16.50
- UPS Power Module Dimensions (hwd, in.)
- 11.8 x 3.7 x 7.2
- UPS Power Module Weight (lbs.)
- 15.1
Primary Form FactorTower
Primary UPS Height (mm)300
Shipping Dimensions (hwd / in.)15.50 x 4.70 x 10.50
UPS Housing MaterialABS
UPS Power Module Weight (kg)6.85
User Interface, Alerts & Controls
- Front Panel LCD Display

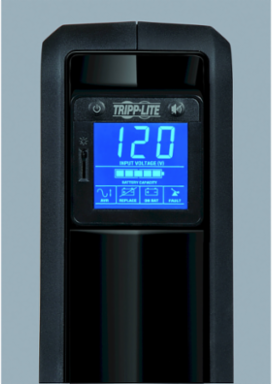

- Backlighted LCD screen indicates input voltage, 5-bar battery charge level, overload, AVR, on battery and replace battery status; LCD screen rotates for rack/tower viewing
- Alarm Cancel Operation
- Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
- LED Indicators
- Front panel LCD display
Switches2 Switches control off/on power status and alarm-cancel/self-test operation; dimmer switch controls LCD brightness
Audible AlarmAudible alarm indicates power-failure and low-battery status; alarm can be disabled using PowerAlert software
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89
Undervoltage CorrectionInput voltages between 89 and 104 are boosted by 14%
Input
- Rated input current (Maximum Load)
- 12A
- UPS Input Connection Type
- 5-15P; Right-Angled
- Recommended Electrical Service
- 15A 120V
Nominal Input Voltage(s) Supported120V AC
UPS Input Cord Length (ft.)6
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 900
- Nominal Voltage Details
- 115v nominal output in battery mode
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Hot-Swap PDU options
- PDUB15 (2U / 8 5-15R outlets)
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Receptacles
- (8) 5-15R
Output Watt Capacity (Watts)475
Frequency Compatibility60 Hz
UPS Output Receptacles (Surge Suppression Only)4 UPS outlets, 4 surge-only outlets
Output AC Waveform (AC Mode)Sine wave
Nominal Output Voltage(s) Supported110V; 115V; 120V
Individually Controllable Load BanksNo
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Communications Interface
- USB (HID enabled)
Communications CableUser supplies USB cable
Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 485
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)61
AC Mode Efficiency Rating (100% Load)97%
Overview
- UPC Code
- 037332125156
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$200,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 4 milliseconds (AC to Battery); 3 milliseconds (Battery to AC)
- High Voltage Transfer to Battery Power (Setpoint)
- 139
Low Voltage Transfer to Battery Power (Setpoint)89
