Tripp Lite OMNIVS1000 OmniVS 120V 1000VA 500W Line-Interactive UPS, Tower, USB port

OmniVS 120V 1000VA 500W Line-Interactive UPS, Tower, USB port - https://media.province-electric.com/tripplite/2020q1/b4778f88bfb12a456e9c1eb726aec79bc42ee761-medium.png

OmniVS 120V 1000VA 500W Line-Interactive UPS, Tower, USB port

MPN: OMNIVS1000
UPC: 037332119728
PPN: TRP-OMNIVS1000

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$471.48/ EA

Qty:

Loading add to cart quantity...

Description

OmniVS 120V 1000VA 500W Line-Interactive UPS, Tower, USB port

Features

1000VA / 1kVA tower 120V line interactive UPS
Corrects brownouts as low as 89V without using battery power
6 UPS battery supported outlets, 2 surge-only outlets
USB port, TEL/DSL/ethernet protection
NEMA 5-15P input plug and 8 NEMA 5-15R outlets
3-year limited warranty
$200,000 Ultimate Lifetime Insurance

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 510

UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

UPS AC Suppression Response TimeInstantaneous

EMI / RFI AC Noise SuppressionYes

Battery

Full Load Runtime (min.): 3.5 min. (500w)

DC System Voltage (VDC): 12

Internal UPS Replacement Battery Cartridge: RBC51

Battery Replacement Description: Hot-swappable, user replaceable batteries

Half Load Runtime (min.)14 min. (250w)

Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%

Battery AccessBattery access door

Expandable RuntimeNo

Certifications

UPS Certifications: Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

Physical

Installation Form Factors Supported with Included Accessories: Tower

Primary Form Factor: Tower

Primary UPS Height (mm): 274

Shipping Dimensions (hwd / in.): 10.00 x 13.90 x 7.80

UPS Housing Material: PVC

UPS Power Module Weight (kg): 8.35

Installation Form Factors Supported with Optional AccessoriesWallmount (UPSWM - tower mounting kit)

Primary UPS Depth (mm)191

Primary UPS Width (mm)132

Shipping Weight (lbs.)16.85

UPS Power Module Dimensions (hwd, in.)10.8 x 5.2 x 7.5

UPS Power Module Weight (lbs.)18.4

User Interface, Alerts & Controls

Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation

Audible Alarm: Audible alarm indicates power-failure and low-battery conditions

Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status

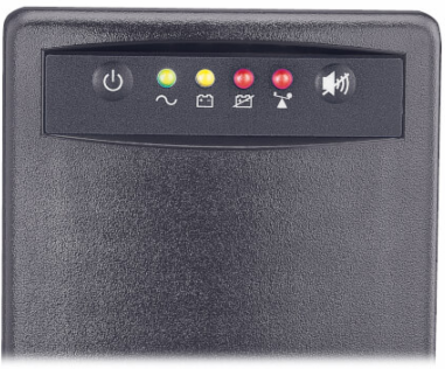

LED Indicators4 LEDs indicate line power, battery power, overload and battery low/replace status

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89

Undervoltage CorrectionInput voltages between 89 and 105 are boosted by 14%

Input

Rated input current (Maximum Load): 12A

UPS Input Connection Type: 5-15P

Recommended Electrical Service: 15A 120V

Nominal Input Voltage(s) Supported120V AC

UPS Input Cord Length (ft.)6

Input PhaseSingle-Phase

Output

Output Volt Amp Capacity (VA): 1000

Output Watt Capacity (Watts): 500

Frequency Compatibility: 60 Hz

UPS Output Receptacles (Surge Suppression Only): 6 UPS outlets, 2 surge-only outlets

Output AC Waveform (AC Mode): Sine wave

Nominal Output Voltage(s) Supported: 110V; 115V; 120V

Individually Controllable Load Banks: No

Output kVA Capacity (kVA)1

Nominal Voltage Details115v nominal output in battery mode

Output Voltage Regulation (Battery Mode)+/- 5%

Hot-Swap PDU optionsPDUB15 (2U / 8 5-15R outlets)

Output AC Waveform (Battery Mode)PWM sine wave

Output Receptacles(8) 5-15R

Communications

PowerAlert Software: For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert

WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications

Communications Interface: USB (HID enabled)

Communications CableUSB interface cable included

Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 664

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)24

AC Mode Efficiency Rating (100% Load)96%

Overview

UPC Code: 037332119728

UPS TypeLine-Interactive

Special Features

Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported

Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS

High Availability UPS FeaturesHot swappable batteries

Warranty

Product Warranty Period (U.S. & Canada): 3-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$200,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 4 milliseconds

High Voltage Transfer to Battery Power (Setpoint): 139

Low Voltage Transfer to Battery Power (Setpoint)89
