Tripp Lite OMNIVS800 OmniVS 120V 800VA 475W Line-Interactive UPS, Tower, USB port
Tripp Lite OMNIVS800 OmniVS 120V 800VA 475W Line-Interactive UPS, Tower, USB port
- MPN: OMNIVS800
- UPC: 037332120953
- PPN: TRP-OMNIVS800
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$467.61/ EA
Description
OmniVS 120V 800VA 475W Line-Interactive UPS, Tower, USB port
Features
- 800VA tower 120V line interactive UPS
- Corrects brownouts as low as 89V without using battery power

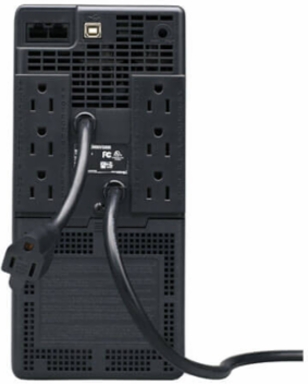

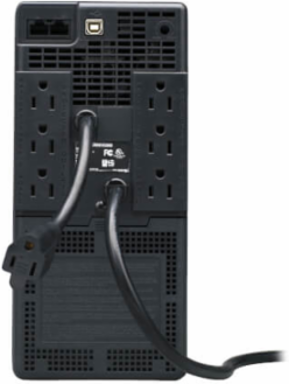

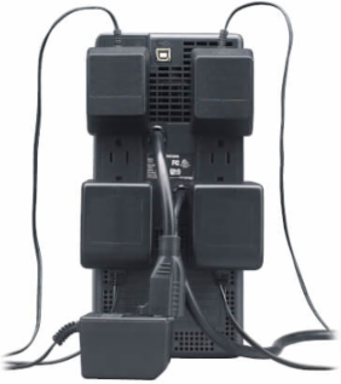

- 6 UPS battery supported outlets, 1 surge-only outlet
- USB port, TEL/DSL/ethernet protection
- NEMA 5-15P input plug and 7 NEMA 5-15R outlets
- 3-year limited warranty
- $200,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 510
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 3.5 min. (475w)
- DC System Voltage (VDC)
- 12
- Internal UPS Replacement Battery Cartridge
- RBC51
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)11.5 min. (240w)
Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%
Battery AccessBattery access door
Expandable RuntimeNo
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
Physical
- Installation Form Factors Supported with Included Accessories
- Tower
- Primary Form Factor
- Tower
- Primary UPS Height (mm)
- 274
- Shipping Dimensions (hwd / in.)
- 8.70 x 13.90 x 7.70
- UPS Housing Material
- PVC
- UPS Power Module Weight (kg)
- 7.21
Installation Form Factors Supported with Optional AccessoriesWallmount ( UPSWM - tower mounting kit)
Primary UPS Depth (mm)191
Primary UPS Width (mm)132
Shipping Weight (lbs.)17.50
UPS Power Module Dimensions (hwd, in.)10.8 x 5.2 x 7.5
UPS Power Module Weight (lbs.)15.9
User Interface, Alerts & Controls
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- Audible Alarm
- Audible alarm indicates power-failure and low-battery conditions
Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status

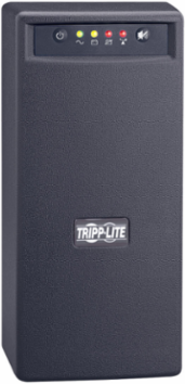

LED Indicators4 LEDs indicate line power, battery power, overload and battery low/replace status
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89
Undervoltage CorrectionInput voltages between 89 and 105 are boosted by 14%
Input
- Rated input current (Maximum Load)
- 12A
- UPS Input Connection Type
- 5-15P
- Recommended Electrical Service
- 15A 120V
Nominal Input Voltage(s) Supported120V AC
UPS Input Cord Length (ft.)6
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 800
- Nominal Voltage Details
- 115v nominal output in battery mode
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Hot-Swap PDU options
- PDUB15 (2U / 8 5-15R outlets)
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Receptacles
- (7) 5-15R
Output Watt Capacity (Watts)475
Frequency Compatibility60 Hz
UPS Output Receptacles (Surge Suppression Only)6 UPS outlets, 1 surge-only outlet
Output AC Waveform (AC Mode)Sine wave
Nominal Output Voltage(s) Supported110V; 115V; 120V
Individually Controllable Load BanksNo
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in USB ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Communications Interface
- USB (HID enabled)

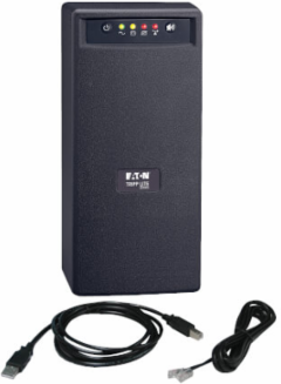

Communications CableUSB interface cable included
Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 631
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)24
AC Mode Efficiency Rating (100% Load)97%
Overview
- UPC Code
- 037332120953
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesHot swappable batteries
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$200,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 2-4 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 139
Low Voltage Transfer to Battery Power (Setpoint)89
