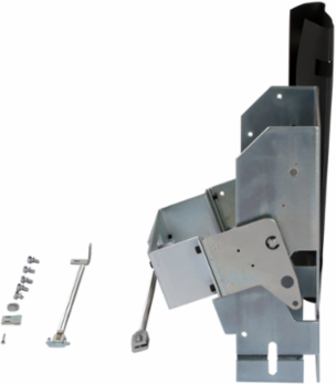

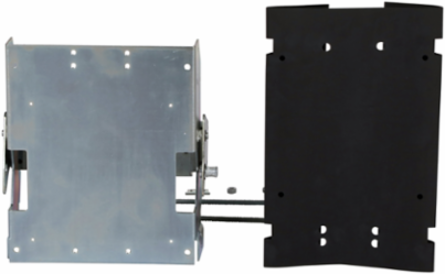

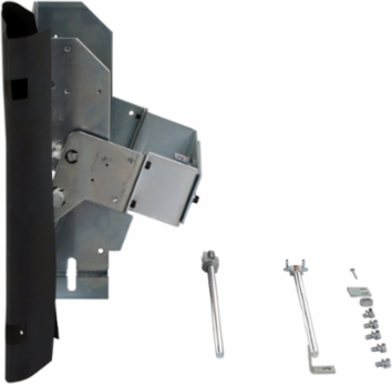

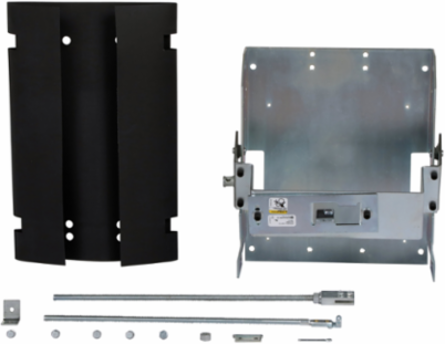

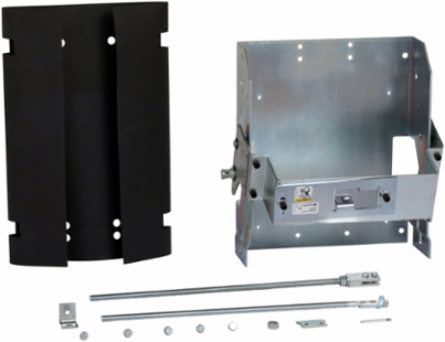

Square D 9422RM1 PowerPact M/P Variable Depth Circuit Breaker Mechanism 800/1200A 3 Pole
- MPN: 9422RM1
- UPC: 785901958673
- PPN: SCH-9422RM1
CAD
$1061.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
These variable depth circuit breaker mechanisms are designed for installation in custom built enclosures with Square D main or branch circuit protective devices. This mechanism will work with PowerPact M or PowerPact P circuit breakers. This mechanism can be used with 800A 3 pole PowerPact M or 1200A 3 pole PowerPact P circuit breakers. The varible depth mounting range is 10.50 to 18.90 inches. A 9422A operating handle is ordered separately. Handle mechanism must be ordered separately. A 9422AP1 or a 9422AP2 handle mechanisms is normally used Operating mechanism is UL Component Recognized and CSA certified
Documentation & Downloads
Specifications
Key Specifications
- Product Certifications
- CSA || UL recognized
- Provided Equipment
- ordered separately
- Product Or Component Type
- Circuit Breaker Mechanism
Range Of Product9422R
Circuit Breaker NamePowerPact M or P 3
Product Mountingflange rod variable depth
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant with Exemptions
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
