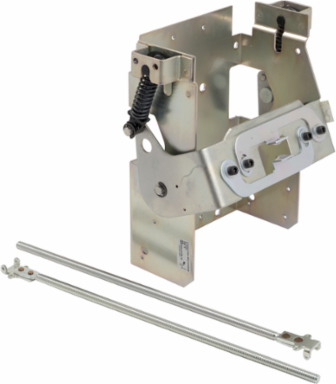

Square D 9422RR1 Circuit Breaker Disconnect Mechanism, 400A, 2 or 3 Pole, Variable Depth 7.44-18.25 Inch

This variable depth mechanism is used with Square D circuit breakers. It is designed for installation in a custom built control enclosure where main or branch circuit protective devices are required. All circuit breaker operating mechanisms are suitable for either right or left hand flange mounting and are convertible on the job. This mechanism is for a 2 or 3 pole LAL or LHL circuit breaker with a 400A frame size. The variable depth mounting range is 7.44 to 18.25 inches. Handle mechanism must be ordered separately. A 9422A1 or a 9422A2 handle mechanisms is normally used Operating mechanism is UL Component Recognized and CSA certified
