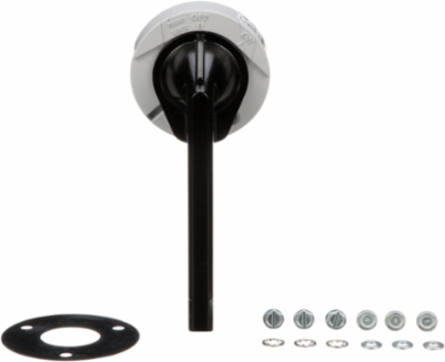

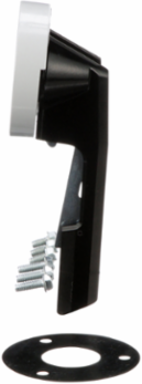

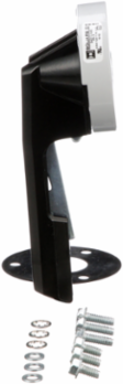

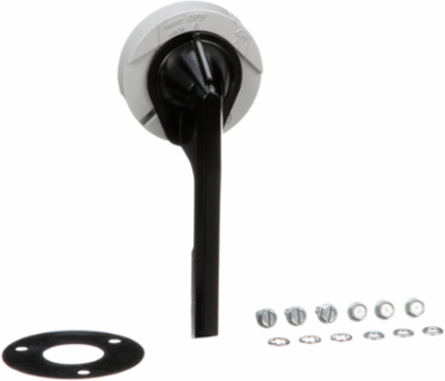

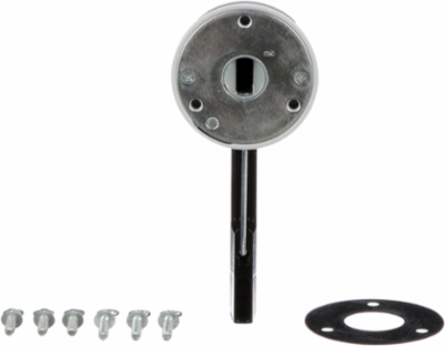

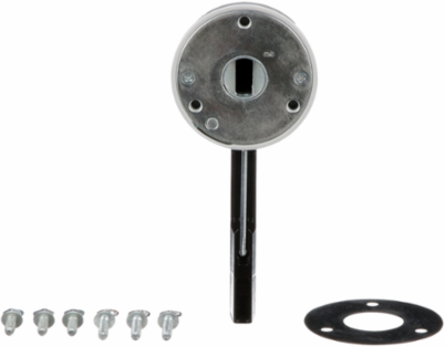

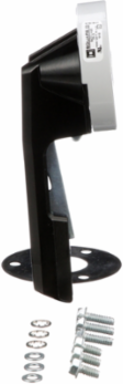

Square D 9421LH46 PowerPacT Handle Assembly Rotary, 6 Inch, 125A to 300A, NEMA 3/4
Square D 9421LH46 PowerPacT Handle Assembly Rotary, 6 Inch, 125A to 300A, NEMA 3/4
- MPN: 9421LH46
- UPC: 785901830276
- PPN: SCH-9421LH46
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$256.72/ EA
Description
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly will work with the operating mechanism for a 2 or 3 pole PowerPact H, and PowerPact J, Compact NSF circuit breakers with a 125A frame size. This handle assembly will also work with the operating mechanism for a 2 or 3 pole PowerPact H, and PowerPact J circuit breakers with a 250A frame size. This handle assembly has a 6 inch handle. This painted handle assembly is rated for NEMA Type 3 and 4. This handle assembly is UL Component Recognized and CSA certified.
Specifications
Specifications
- Product Or Component Type
- Handle Assembly
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free plastic parts product
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
Complementary
- Product Destination
- 9421LG7, LF1, LK1, LJ7 or LL1 operating mechanism
- Product Compatibility
- NEMA 1/3R/4/12 enclosure
Surface Finishpainted black
Length6 in
