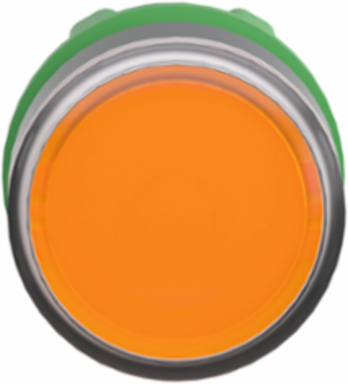

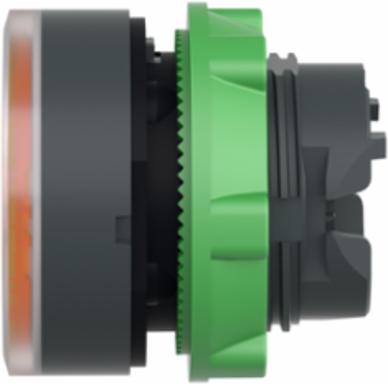

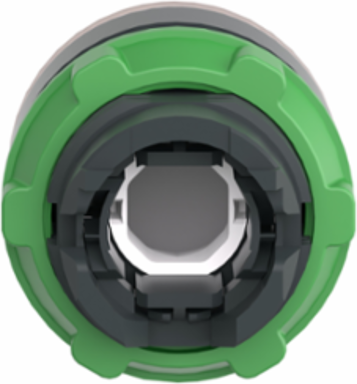

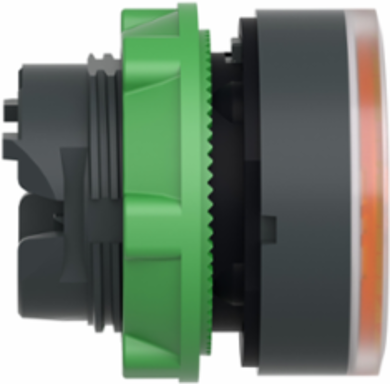

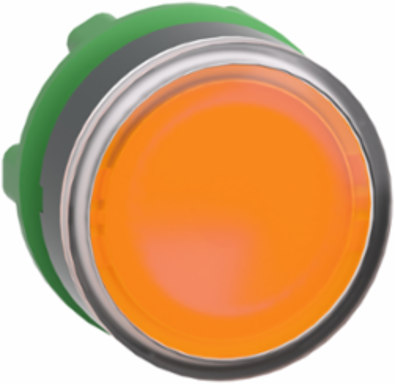

Schneider Electric ZB5AW353 Harmony XB5 22mm Flush Orange Push Button Head with Universal LED
- MPN: ZB5AW353
- PPN: SCH-ZB5AW353
CAD
$13.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB5, plain lens illuminated orange flush head for integral LED operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Features
- Engineered precisely for standard 22mm panel cutouts, this Schneider Electric Harmony XB5 push button head offers seamless drop-in integration with your current control systems. It functions as a modular component that allows you to easily refresh worn operators or customize existing control stations without modifying your structural layout or wiring infrastructure.
- Boasting an exceptional IP66, IP67, IP69, and IP69K dual-classification alongside NEMA 4X and NEMA 13 protection ratings, this rugged plastic operator completely seals out dust, oil, water, and corrosion. It is specifically built to withstand high-pressure water jet cleanings up to 7,000,000 Pa at 55°C, ensuring flawless performance in demanding food processing, chemical handling, and industrial manufacturing facilities.
- Featuring a high-efficiency momentary spring-return mechanism, this industrial-grade actuator is laboratory tested to deliver an outstanding mechanical durability of up to 10,000,000 cycles. This heavy-duty reliability prevents unexpected physical wear and runtime failures, vastly minimizing costly machine downtime and routine panel maintenance in busy production environments.
- The plain, unmarked orange flush lens is custom-tailored for integral universal LEDs, optimizing light transmission for high-clarity visual signaling. The bright orange status illumination immediately alerts operators to specific machine states, safety notifications, or localized processes from across the plant floor, drastically reducing operator errors.
- The smart modular architecture enables quick front-mounting onto standard ZB5AZ009 fixing collars and hassle-free coupling with independent contact blocks or LED light bodies. This click-and-lock modular configuration streamlines initial panel building timelines and allows industrial electricians to perform rapid, tool-free field replacements during scheduled servicing windows.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- with plain lens
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for illuminated push-button
- Head Type
- standard
- Bezel Material
- dark grey plastic
- Product Compatibility
- universal LED
Range Of ProductHarmony XB5
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Sale Per Indivisible Quantity1
Operator Profileorange flush, unmarked
Device Short NameZB5
Complementary
- Main Group
- illum push-button
- Net Weight
- 0.017 kg
- Device Presentation
- basic sub-assemblies
- Cap/Operator Or Lens Colour
- orange
- Marking
- unmarked
- Cad Overall Width
- 29 mm
- Group Of Product
- flush push integral LED
Electrical Composition CodeM1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Cad Overall Height29 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Mechanical Durability10000000 cycles
Station NameXALD 1...5 cut-outs || XALK 2...5 cut-outs
Cad Overall Depth30 mm
Environment
- Product Certifications
- BV || CSA || DNV || UL listed || LROS (Lloyds register of shipping) || GL
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TC
Ik Degree Of ProtectionIK05 conforming to EN 50102
StandardsUL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || GB 14048.5 || JIS C8201-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
